CASE - DB: Steering / Front Axle
Steering / Front Axle
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

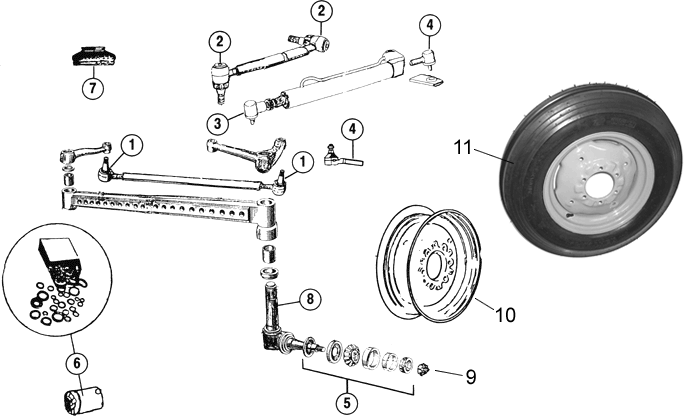

Ref.
Part No.
Replaces
Description
Application
1
B3312
K908071
Tie Rod End

ALL 2wd models EXCEPT cropmaster
and
1410, 1412 (see below)

2
Drag Link End

ALL manual steering models AFTER cropmaster

3
B3313
K929057
Front Cylinder End

ALL power steering models EXCEPT those
fitted with Transverse Ram

4
B3314
K207721
Rear Cylinder End
Inner Rod End
(2 required)

1410, 1412 fitted with Transverse Ram (outer N/A)

5
B3315
K962984
Bearing / Seal Kit

770, 780

B3764
VARIOUS
Bearing / Seal Kit
includes both 1 3/8" (35mm) + 1 1/2" (38mm) inner bearings

880, 885, 990, 995, 1190, 1194, 1290, 1294, 1390, 1394

B3765
VARIOUS
Bearing / Seal Kit

1200, 1210, 1212, 1410, 1412, 1490, 1690

6
B6905
K964935
Seal Kit for Power Steering
Pump Reservoir

885, 990, 995, 1210, 1212

7
B3302
VARIOUS
Universal Ball Joint Boot
8
B7187
K262209
Uprated Heavy Duty Axle L.H. / R.H.
A = 10" (254mm) includes 7/8" nut

Selectomatic models standard clearance
990, 995, 996, 1290, 1294, 1390, 1394

9
B3774
K617157
3/4" dia nut

Early axles

B7698

7/8" dia nut

Uprated axles

10
B6807
Heavy Duty Wheel Only 4 1/2" x 16" takes 600 x 16" tire

ALL models with pressed steel wheels

B6808
Heavy Duty Wheel Only 5 1/2" x 16" takes 750 x 16" tire
11
B8807
WHEEL fitted with 6.00 X 16" TRI RIB AGRIC TIRE & TUBE
B8808
WHEEL fitted with 7.50 X 16" TRI RIB AGRIC TIRE & TUBE
