CASE - DB: Engine Gaskets
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
Ref.
|
Part
No.
|
Replaces
|
Description
|
Application
|
|

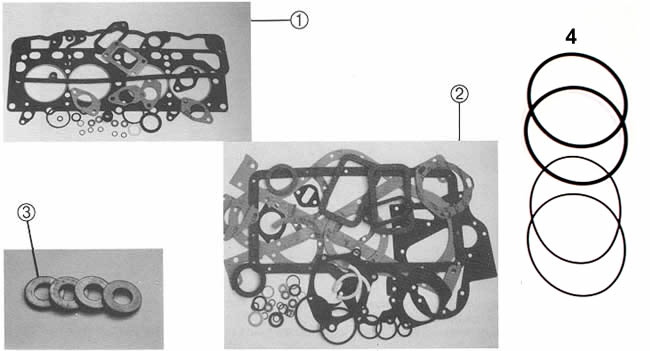

1
|
B6926
|
K260287
K964876
|
Top
(VRS)
Gasket Set |
770,
780, 880 (3 cylinder)
885, 1190, 1194
|
|
|
B6927
|
K961001
|
990
Implematic
3 5/8" (92.1mm) bore (up to 1968)
|
|
B6929
|
K964883
K964997
K260285
|
990
Selectomatic (1968 to 1979)
995,
1200, 1210, 1212, 1410, 1412
1290, 1294, 1390, 1394, 1490, 1494
3 15/16" (100mm) bore 4 cylinder
|
|
B7587
|
K965964
|
All
6 cylinder i.e. 1594,
1690, 1694 Turbo, 1694
|
|
2
|
B6930
|
with
B6926
=K964877
|
Bottom
(Conversion)
Gasket Set |
770,
780, 880
(3 cylinder), 885,
1190, 1194
|
|
B7586
|
with
B6927
=K961000
|
990
Implematic
3 5/8" (92.1mm) bore (up to 1968)
|
|
B6931
|
K965803
|
990
Selectomatic (1968 to 1979)
995,
1200, 1210, 1212, 1290, 1294
1390, 1394, 1410, 1412, 1490, 1494
3 15/16" (100mm) bore 4 cylinder
|
|
B7588
|
K965963
|
All
6 cylinder i.e. 1594,
1690, 1690 Turbo, 1694
|
|
3
|
B223
|
|
Injector
Washer (individual) |
Fits all above models
|
4 |
|
K66385 |
Cylinder Liner "O" Ring (8 reqd.) |
990 Implematic
3 5/8" (92.1mm) bore (up to 1968) |
|
