CASE - I.H. Brakes - PTO
CASE - I.H. Brakes - PTO

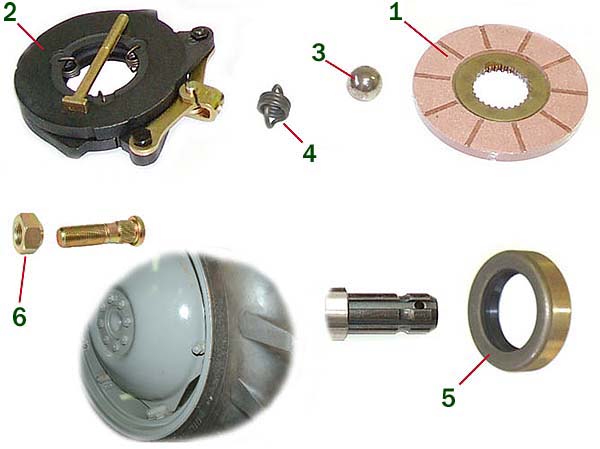

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B2007
3064170R92
DISC ASSEMBLY
(2 per wheel)
Late B275, 414 with 6 1/2" (165mm) disc brakes
354, 374, 384, 434, 444
2
B507
3067135R92
ACTUATOR ASSEMBLY
3
B462
706039R2
BALL
(5 per wheel)
4
B5184
3066876R1
SPRING
(3 per wheel)
5
B1086
385766R91
P.T.O. OIL SEAL
454, 474, 475, 574, 674, 484, 584
684, 784, 884, 385, 485, 585, 685, 885
6
B1754
3047575R2
REAR WHEEL NUT
CASE - I.H. Brakes - PTO
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
