Hoses, Fanbelt, Radiator
Hoses, Fanbelt, Radiator
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

ILLUSTRATION
PART No.
REPLACES
DESCRIPTION
APPLICATION
EONN8005MC15M
83990194
RADIATOR
  • 2000, 3000, 4000,
  • 2600, 3600, 4100,4600, 2610, 3610, 3910, 4110, 4610
81817280
  • 5000, 5600, 6600, 7600, 5610, 6610, 6710 Without Oil Cooler.
83984124
  • 5600, 6600, 7600, 5610, 6610, 6710 With Oil Cooler.
82015097
RADIATOR
  • TS 90, TS 100, TS 110, TS115

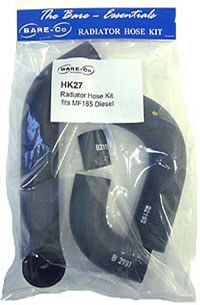

RADIATOR HOSE KIT
  • 2000, 3000, 4000, 2600, 2610, 3600, 3610, 4600,
  • 4610, 3910, 4100, 4110, 3230, 3430, 3930, 4130, 4630,

  • 5000, 7000, 5600, 6600, 7600, 7700,
  • 5610, 6610, 6710, WITHOUT AIRCOND.

  • TW5, TW10, TW15, TW20, TW25, TW30, TW35
  • 8630, 8730, 8830

D5NN8260D
TOP HOSE

  • 2000, 3000, 4000, 5000, 7000, 2600, 2610, 3600, 3610, 4600, 4610, 3910, 4100, 4110,
  • 3230, 3430, 3930, 4130, 4630,
  • 5600, 6600, 7600, 7700
  • 5610, 6610, 6710, Without Aircond.
E3NN8333AA
83934898
TOP HOSE
  • TW5, TW10, TW15, TW20, TW25, TW30, TW35
  • 8630, 8730, 8830
FONN8260CA
81862934
TOP HOSE
  • 5640, 6640, 7740,
  • TS80, TS90, TS100, TS110, TS115
81805637
C5NN8286B
BOTTOM HOSE
  • 2000, 3000, 4000, 2600, 2610, 3600, 3610, 4600,
  • 4610, 3910, 4100, 4110, 3230, 3430, 3930, 4130, 4630,
81805638
C5NN8286C
  • 5000, 7000, 5600, 6600, 7600, 7700,
  • 5610, 6610, 6710, Without Aircond.
(2 req)
83933452
D8NN8B298AB
  • TW5, TW10, TW15, TW20, TW25, TW30, TW35
  • 7910, 8210
  • 8630, 8730, 8830
BOTTOM HOSE
FONN8286AB
  • 5640, 6640, 7740, 7840, 8240, 8340
  • TS80, TS90, TS100, TS110, TS115

7 lbs
83935904
81747955
RADIATOR CAP
7 lbs
20mm (.787") Reach
  • 2000, 3000, 4000, 5000, 7000, 2600, 2610, 3600, 3610, 4600,
  • 4610, 3910, 4100, 4110, 3230, 3430, 3930, 4130, 4630,
  • 5600, 6600, 7600, 7700, 5610, 6610, 6710
10 lbs
83935905
RADIATOR CAP
10 lbs
20mm (.787") Reach

  • TW5, TW10, TW15, TW20, TW25, TW30, TW35
  • 7610, 7710, 7910, 8210, 8630, 8730, 8830

4999682
RADIATOR CAP
Recovery type cap

  • 35 Series, TD Series, TD4000F Series, TDD Series, TDF Series, TL Series, TN Series
  • TNA Series, TND Series, TNDA Series, TNF Series, TNFA Series, TNN Series,
  • TNNA Series, TNS Series, TNSA Series, TNV Series, TNVA Series
  • TT50, 55, 65, 75




















C9NN10C318B
C5NE8620B
AIR COND. BELT
(Up to 1984)
SEE B5198 BELOW
FOR LATER MODELS
  • 7610, 7710, 7910 1-1-1982 to 31-3-1984
  • TW5 (1982-3/1984)
  • 8210 (1982-3/1984)


FAN BELT

  • 2000, 3000, 4000, 5000, 7000 (1965-1974), Generator type, 8200 (1968-1972 W/PUMP/FAN DRIVE)
  • 9000, 9200, 9600, 9700 (ALT DRIVE 1-1-1968 to 31-12-1969)
  • TW25, TW35 1982-3/1984 (A/C DRIVE) See B5198 below for LATER MODELS.
86514611
  • 7610, 7710, 7810  (High Mount Alt)
    See B7092 below for LATER MODELS.
9625879
  • 7910, 8210 ( ALT DRIVE)
  • 8530 (PUMP/FAN/ALT)
  • 8630, 8730, 8830 PUMP/FAN/ALT), 8700 (1975),
  • 9000, 9200, 9600, 9700 (FAN DRIVE)
  • TW5, TW15, TW25, TW35 (A/C DRIVE)
  • TW5, TW10, TW15, TW20, TW25, TW30, TW35 (FAN DRIVE)
D2NN5620A
  • 7910, 8210 With Viscous Fan
  • 9000, 9200, 9600, 9700 (FeB1973-JulY1976 FAN DRIVE)
  • TW5, TW10, TW15, TW20, TW25, TW30, TW35 (ALT DRIVE)
98473706
  • 3830, 4135, TT4.55, TT4.65, TT4.75, TT4.80, TT4.90, TT75
  • TD60, TD70, TD80, TD90, TD95 (Tier 1 Spec) Belt Length 1155mm 45 1/2"
  • TD60, TD70, TD80, TD90, TD95 (TTF Tier 2 Spec)
  • TD85F (Tier 2 10/2009-12/2011), TD85F (Tier 3 5/2011-12/2011)
  • TL70, TL80, TL90, TL100,  (10/1998-1/2004 ALT/ W/AC)
500369112
  • TD90, TD95 (Tier 2 Spec) Belt Length 1205mm  47 1/2"
4796652
98473705
  • 4635, 4835, 5635, 6635, 7635,  Alt
  • TN55D, TN55S, TN65D, TN65S, TN75D, TN75S,  11/1998 -12/2003
  • TN65, TN70, TN75, 9/1999-12/2003
  • TN65F, TN75F, TN90F, 9/1997-10/2001
  • TN70A, TN70DA, TN70SA, TN75A, TN75DA, TN75SA
  • TN70D, TN70S,  6/2000-12/2003
  • TN70F 10/2001-1/2004
  • TN75FA
  • TL70, TL80, TL90, TL100 (PUMP/FAN DRIVE)
  • TD60, TD70, TD80, (Tier 2 Spec)
  • L60, L65, L75, L85, L95 (ALT/ W/AC)
443634

HIGH MOUNT ALTERNATOR

  • 2600, 3600, 3900, 4600, 5600, 5700, 6600, 7600, 7700 (4/1979),
  • 5110, 5610, 6410, 6710, 6810, 7410, 7610, 7710
  • L/35 Series Idler Drive Belt
9604339

STD MOUNT ALTERNATOR

  • 2600, 3600, 3900, 4100, 4600, 5100, 5600, 5700, 5900, 6600, 6700, 7600, 7700,  (1975-1980)

  • 5610, 6410,  6610, 6710, 6810, 7410 L/AC
  • 7910 W/AC
  • 2310, 3610, 3910, 4110, 4610, 5110,
  • 3230, 3430, 3930, 4130, 4630,
  • 8000, 8200 (ALT DRIVE)
  • 8210 (ALT DRIVE W/AC)
  • 8600 (ALT DRIVE)
D3NN10C318C
87800127
87800129
DRIVE BELT
  • 7810 (AC DRIVE BELT)
  • 7910 (AC DRIVE BELT, Apr 1984- Dec1989)
  • 8000 1968-12/1969 WATER PUMP/FAN
  • 8210 (1/1984-12/1989 AC DRIVE BELT)
  • TW5, TW15, TW25, TW35 (4/1984-12/1989 AC DRIVE BELT)
  • 7000 USA Models
D5NN10C318C
ALTERNATOR BELT
AC DRIVE BELT
765mm   30.12" Long
  • 7610, 7710, L/AC
  • 5900, 5610, 6410, 6610, 6710, 6810, 7410,
E4NN10C318AA
ALTERNATOR BELT
800mm   31.5" Long
  • 7810 (W/AC)
87309963

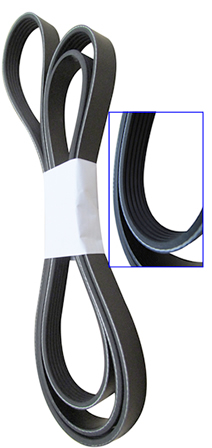

SERPENTINE FLAT BELT

MODELS WITH AIR CONDITIONING

  • 5640, 6640, 7740, 7840, 8240, 8340
  • TS80, TS90, TS100, TS110, TS115
  • TC54, TC56 Combine
87316556
SERPENTINE FLAT BELT
Belt Length 2217mm  87.28"

MODELS WITHOUT AIR CONDITIONING

  • 5640, 6640, 7740,
  • 7840, 8340, TS80, TS90, TS100, TS110, TS115
  • TC54, TC56 Combine
82850751
SERPENTINE FLAT BELT
Belt Length 2228mm  87.72"

MODELS WITHOUT AIR CONDITIONING

  • 5640, 6640, 7740
  • TS 90, TS 100, TS110, TS115
87801102
TENSIONER PULLEY

MODELS WITH OR WITHOUT AIR COND.

  • 5640, 6640, 7740, 7840, 8240, 8340
  • TS80, TS90, TS100, TS110, TS115
  • TC54, TC56 Combine
  • HW320, 2450, 2550 Speedrower, Self-Propelled Windrower
83995241
FONN8A618AA
IDLER PULLEY
81871906
IDLER PULLEY

MODELS WITH AIR COND.

  • 5640, 6640, 7740, 7840, 8240, 8340
  • TS80, TS90, TS100, TS110, TS115
  • TC54, TC56, TF78 Combine A/C pulley plus Rotary screen drive pulley.
83916917
THERMOSTAT
  • 2000, 3000, 4000, 5000, 7000, 2600, 3600, 4100, 4600, 5600, 6600, 7600, 7700,
87803664
  • 2610, 3610, 4610, 3910, 4110, 3230, 3430, 3930, 4130, 4630, 5610, 6610, 6710, 7610, 7710, 7910, 8210, 8630, 8730, 8830
  • 5640, 6640, 7740, 7840, 8240, 8340
  • 60 SERIES, 70 SERIES, TS SERIES, TM SERIES
  • TC54, TC56, TX36, TX66 Combine, TR86, 87, 88, 89, 96, 97, 98, 99 Combine,
  • HW320, HW340 Speedrower Self-Propelled, 1499 Self-Propelled Mower Conditioner
4823226
98463637
  • 3010S, 3435, 3830, 3935, 4030, 4135, 4230, 4430, 4635, 4835, 5635, 6635, 7635, 8045, 8065, 8430,
  • TD Series, TD4000F Series, TDD Series, TDF Series, TL Series, TN Series, TNA Series,
  • TND Series, TNDA Series, TNF Series, TNFA Series, TNN Series, TNNA Series,
  • TNS Series, TNSA Series, TNV Series, TNVA Series, TT50, 55, 65, 75
