APPLICATION |

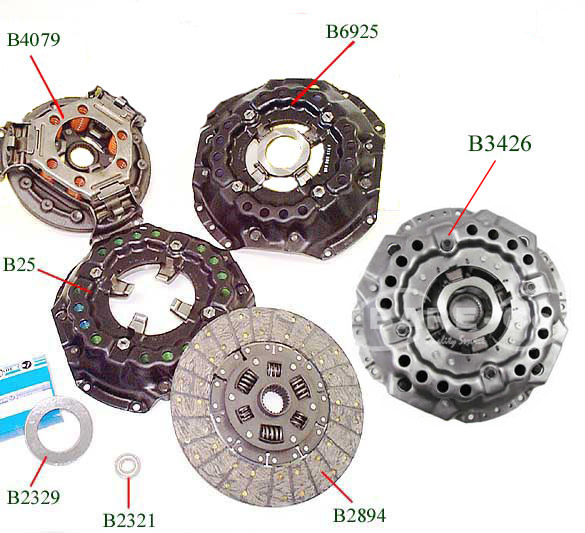

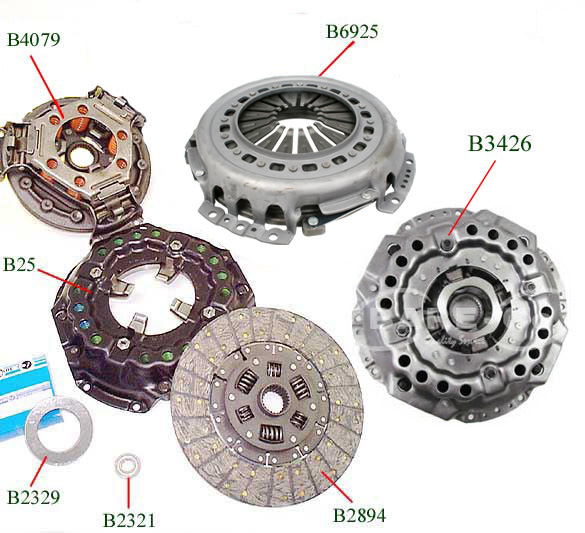

Full CLUTCH KIT includes: Clutch ASSEMBLY Plates & all bearings shown. |
CLUTCH KIT |
Clutch Plate |
Identify |
|
Thrust Bear'g |
Pilot Bearing |
4100, 4600
(11" Clutch)|
3910, 4110, 4610
with 11" Clutch
(up to april 1983) |
B9300
(Full kit)
|
B21
Replaces
D1NN7550A
E3NN7550AA
D1NN7550A
3937176 Disc plate
Replaces paddle type plate
|
11" x 1"
10 Spline
ORGANIC
|
B4079
(Uprated)
Replaces
D8NN7563DB
E6NN7563BA
DONN7563A
C9NN5563D
C9NN7563E
1822440
1822077
3935271
With PTO hub
|
B2329
Replaces
D8NN7580AA
D8NN7580BB
D8NN7580CA
3933520
3946908
3917358 |
B2321
Replaces
C5NN7600A
1805417 |
13" Clutch
(from may 1983)
2610, 2810, 2910, 3230, 3430, 3930,
+ following models with 10 spline plate:
3400, 3500, 3550, 3600, 3610, 3910, 4100, 4110, 4130, 4330, 4340, 4400, 4410, 4450, 4500, 4600, 4610, 4630, 4830, 5030
|
B9304
(Full kit)
|
B7206
Replaces
FONN7550BA
E8NN7550MA
3982643
E3NN7550BA
3937180
|
13" x 1"
10 Spline
(Rigid Centre
can replace sprung hub option)
|
B3426
Replaces
C5NN7563AC
1815763
|
Following models with 15 spline plate:
3400, 3500, 3550, 3600, 3610, 3910, 4100, 4110, 4130, 4330, 4340, 4400, 4410, 4450, 4500, 4600, 4610, 4630, 4830, 5030 |
|
|
13" x 1"
15 Spline
(Rigid Centre
can replace sprung hub option) |
5000 10/69-5/1971
11" Clutch model only |
B9306
(Full kit)
|
B5279
Replaces
C7NN7550AB
1820885
|
11" x 1 5/8"
25 Spline
|
B4079
Replaces
D8NN7563DB
E6NN7563BA
DONN7563A
C9NN5563D
C9NN7563E
1822440
1822077
3935271
|
B3641
Replaces
C5NNN779B
1816675 |
5000 65-9/69
then 6/1971 on
12" Clutch
5600, 6600, 6700
5610, 6610, 6710
7610, 7710
With 12" Clutch |
B9307
(Full kit)
|
Less Dual Power
B2894
Replaces
E3NN7550EA
C7NN7550Z
1820829
|
12" x 1 5/8"
25 Spline
sprung centre
|
B25
Replaces
EONN7563CA
3925716
|
B9308
(Full kit)
|
With Dual Power
B5282
Replaces
E7NN7550DA
E3NN7550CA
3937183
|
12" x 1 3/4"
10 Spline
sprung centre
|
5000 65-9/69
13" Clutch
7000, 6600, 6700
7600, 7700, 5610
6610, 7710 |
B9309
(Full kit)
|
Less Dual Power
B5280
Replaces
E8NN7550KA
D9NN7550CA
3919288
|
13" x 1 5/8"
25 Spline
rigid centre
|
B6925
Replaces
D8NN7563AB
3927137
|
B9310
(Full kit)
|
With Dual Power
B5281
Replaces
D9NN7550AB
|
13" x 1 3/4"
10 Spline
sprung centre
|
4635, 4835
with 12" Single Clutch.
Upgrade to Ceramic Clutch as used on the following models
5635, 6635, 7635
with 12" Single Clutch. |
|
B5566
=5189825
CERAMIC
310 x 45mm
(12" x 1 3/4")
16 Splines
Sprung Hub
|
Single Clutch.
12" x 1 3/4"
16 Splines
Sprung Hub |
|
N/A |
B7179
Replaces
28996650
500311249 |
4230, 4430, 5530, 6530, 4460, 7530,
4635, 4835, 5635, 6635, 7635
with DUAL CLUTCH
|
Refer to FIAT / HESTON, NEW HOLLAND |
