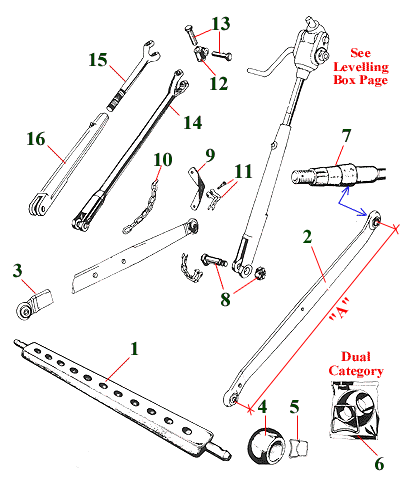

Ford - 3 Point Linkage
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
|
|
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B121
|
9N5182A
1826363
|
Drawbar Cat. 1 7/8" Pins x 26" |
2N, 8N, 9N, Dexta, Super Dexta, 2000, 3000, 2600, 3600, 2610, 3610 |
|
B6121
|
201834
1811489
|
Short Cat. 1 Draw Bar (21 1/2") |
Fits Small Japanese Applications |
|
B124
|
|
Drawbar Cat. 2 1-1/8" Pins x 26 " |
Major, Super Major, 4000, 5000, 7000, 4100, 4600
5600, 6600, 6700, 7600, 7700, 3910, 4110, 4610, 6610
6710, 7610, 7710 |
|
B2722
|
|
Drawbar Cat. 2 = Extra Long (30") |
Extra Long Drawbar to fit larger tractors with swing drawbar mounts |
|
2
|
B500
|
9N555B |
Cat 1 Lower Link
Fixed Cat 1 Ball Ends |
Thick
1/2"
|
"A"
32"
|
2N, 8N, 9N, NNAA, Dexta , Super Dexta |
|
B501
|
|
Thick
5/8"
|
"A"
32"
|
2000, 3000 (with Cat 1 linkage)
(Cat 1 7/8" fixed balls) |
|
B486
|
Non Original Cat 2 Link (M.F. type) (removable ball) |
Thick
11/16"
|
"A"
35"
|
|
4000, 4100, 4600, 4610 Confirm length |
|
|
B147
|
|
Alternative H/D M.F. Cat 2 Link
(must fit pair) |
Thick
11/16"
|
"A"
38"
|
|
Alternative H/D. Cat 2 Link
Must Fit Pair due to length |
|
|

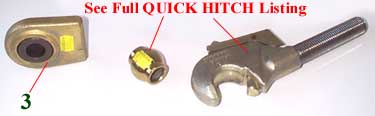

3
|
B652
|
|
Precision Cat 2 - weld on end |
Universal |
|
4
|
B56
|
E1ADDN995233
1718883
|
Ball Cat 1 (7/8") flat sides |
All Models with Removable Lower Link Balls |
|
B55
|
C5NN557B
1822686
|
Ball Cat 2 (1-1/8") flat sides |
|
B57
|
C5NN557A
1801634
|
Ball Cat 2 (1-1/8") round |
|
5
|
B127
|
C5NNN557B
1814226
|
Clip (ball retaining) |
|
6
|
B5142
|
|
Dual Cat 1-2 ball and clip |
|
7
|
B1700
|
NCA563C
1801640
|
Tapered Lower Link
Mount Pin Cat 1 (heat treated) |
2000, 3000, 2600, 3600 fits L.H. side only with diff lock. Both Sides without diff lock (Short Pin) |
|
8
|
B1085
|
C5NN595B
1801675
|
|
2N, 8N, 9N
Dexta, Super Dexta, 2000, 3000, 2600, 3600
2310, 2610
When fitted with Cat 1 linkage |
|
9
|
B1853
|
957E596
957E597
1801676
|
Anchor Bracket |
|
10
|
B67
|
C7NN591A
1822159
|
Check Chain |
|
11
|
B5137
|
C5NNA945C
|
Clevis and Pin Set |
|
12
|
B1795
|
957E566
1717225
|
Knuckle |
2N, 8N, 9N, Dexta, Super Dexta, 2000, 3000, 4000, 2600, 3600
4600, 4100, 2310, 2610, 2910, 3910, 4110, 4610 |
|
13
|
B1640
|
E27N995282
1718905
|
Knuckle Pin 5/8" dia |
|
14
|
B2387
|
C5NN564B
1801642
|
Yoke Rod |
2000, 2600 up to Nov 1978 |
|
15
|
B2388
|
C5NNB863A
1802071
|
Yoke Rod
15" x 3/4" UNC |
2N, 8N, 9N, Dexta, Super Dexta, 2000, 3000, 4000, 2600, 3600
(4600, 4100, 3910, 4610, 4110 with Cat 1 linkage) |
|
16
|
B389
|
957E585
|
Fork |
3/4" x 10 1/4"
|
Dexta, Super Dexta |
|
B392
|
C5NN585C
1801668
|
3/4" x 14"
|
2000, 3000, 2600, 3600, 2310, 2610 |
|
B3615
|
C5NN585B
1801667
|
3/4" x 19 1/2"
|
4000 (3900, 4600, 4100, 3910, 4610, 4110
with Cat 1 linkage) |
|
B7070
|
E0NN585CA
3924898
|
13/16" x 20"
|
3900, 4600, 4100, 3910, 4610, 4110 with Cat 2 linkage |
|
B2453
|
D2NNA935A
1831205
|
1-1/4" x 17 3/4"
|
5000, 5600, 6600, 6700, 7000, 7600, 7700
with 36" links |

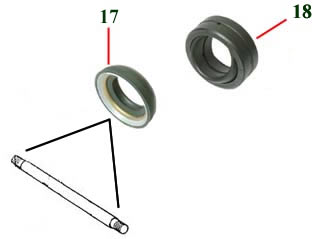

17 |
|
5121123
47124792 |
SENSOR SHAFT SEAL |
3435, 3935, 4135, 4835, 5635, 6635 + TN & TD Series,
L60, L65, L75, L85
TL70, TL80, TL90 |
18 |
|
5116244 |
SENSOR SHAFT BEARING |
|
