REF
|
PART No.
|
DESCRIPTION
|
APPLICATION
|
|

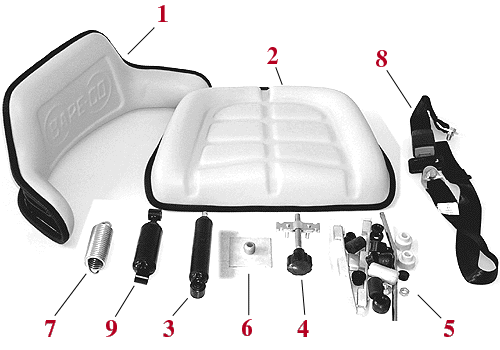

1
|
B7492
|
Backrest ASSEMBLY - BLACK
|
B9151 forklift seat
|
|
B1220
|
B8642 Standard rear suspension seat
|
|
1a
|
B9650
|
Backrest ASSEMBLY - BLACK
|
BARE-Co B9642, B9643, B9644 rear suspension seats |
|
2
|
B5519
|
Lower Cushion + Pan - BLACK
|
BARE-Co B8642, B9642, B9643, B9644 rear suspension seats |
|
B7491
|
Lower Cushion + Pan - BLACK
|
BARE-Co B9151 Fork Lift seat |
|
|
Cushion / Back ASSEMBLY - BLACK |
BARE-Co B9645 (narrow) seat |
|
3
|
B7406
|
H.D. (1 3/8"dia) Shock Absorber (eye one end - pin hole other end)
|
All BARE-Co / BARE-Co - GRAMMER rear suspension seats
|
|
4
|
B7485
|
Weight regulating knob Kit
|
|
|
5
|
B7487
|
Repair Kit containing plastic rollers/slides/lever etc for rear and lower slides
|
|
|
6
|
B5463
|
Delrin roller
|
Old type BARE-Co - GRAMMER lower suspension seats i.e. with coil extension springs
|
|
7
|
B1501
|
Main spring
|
BARE-Co B8642, B9642, B9643, B9644 rear suspension seats
|
|
B8060
|
Outer spring (light)
|
|
|
8
|
B8152
|
Seat Belt Kit approved to EEC standard
|
Universal
|
|
9
|
B1636
|
Shock Absorber(6 5/16"closed eye to eye)
|
Latest design B8150/B8180 seats as illustrated
|
|
10
|
|
Knob |

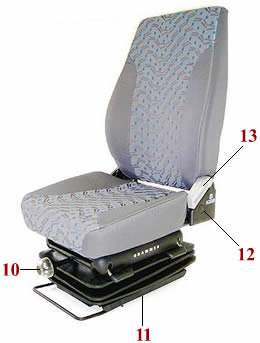

Fits B8180 / B9180 High Back Velour Platform Mount Cab Seat as illustrated |
|
11
|
|
Nylon Roller Kit |
|
12
|
|
Hinge Cover Kit (Pair) |
|
13
|
|
Handle |
|
14
|
|
Lower Cushion + Pan |

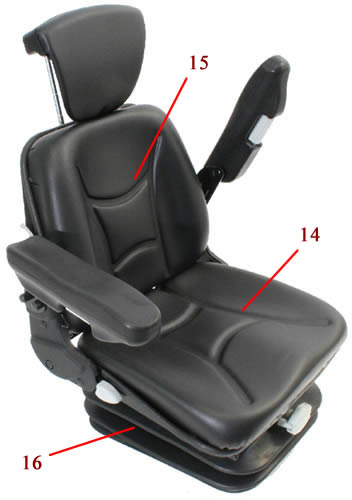

Fits B9646 Velour Platform Mount Cab Seat as illustrated |
|
15
|
|
Backrest ASSEMBLY |
|
16
|
|
Suspension ASSEMBLY |
