GENERAL - Commercial Shackles

COMMERCIAL "D" SHACKLES - ZINC PLATED
NOT TO BE USED FOR LIFTING
PART No.
SIZE
B1410

6mm

(1/4")

B1415

8mm

(5/16")

B1420

10mm

(3/8")

B1430

12mm

(1/2")

B1440

16mm

(5/8")

B1442

19mm

(3/4")

B1450

25mm

(1")

FORGED HEAVY DUTY "D" SHACKLES - Heat Treated Pin
WLL RATED to ASME B30.26 Standard for LIFTING
WLL = Work Load Limit
PART No.
BOW SIZE
PIN SIZE
WLL
Work Load Limit
B2067

8 mm

5/16"

9.5 mm

3/8"
0.75 Tonne
B2071

10 mm

3/8"

11 mm

7/16"

1.0 Tonne
B2068

11 mm

7/16"

13 mm

1/2"

1.5 Tonne
B2072

13 mm

1/2"

16 mm

5/8"

2.0 Tonne
B2073

16 mm

5/8"

19 mm

3/4"

3.25 Tonne
B2069

19 mm

3/4"

22 mm

7/8"

4.75 Tonne
B2070

25 mm

1"

28.6 mm

1 1/8"
8.5 Tonne

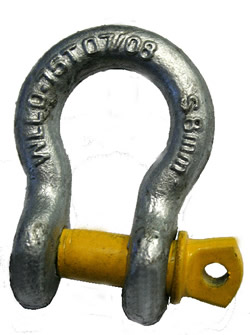

FORGED HEAVY DUTY BOW SHACKLES - Heat Treated Pin
WLL RATED to ASME B30.26 Standard for LIFTING
WLL = Work Load Limit
PART No.
BOW SIZE
PIN SIZE
WLL
Work Load Limit
B2060

8 mm

5/16"

9.5 mm

3/8"
0.75 Ton
B2061

10 mm

3/8"

11 mm

7/16"

1.0 Ton
B2066

11 mm

7/16"

13 mm

1/2"

1.5 Ton
B2062

13 mm

1/2"

16 mm

5/8"

2.0 Ton
B2063

16 mm

5/8"

19 mm

3/4"

3.25 Ton
B2064

19 mm

3/4"

22 mm

7/8"

4.75 Ton
B2065

25 mm

1"

28.6 mm

1 1/8"
8.5 Ton
