Heavy Duty Agricultural Wheels

B6438
Heavy Duty Solid Cushion Tyre.
Wheel and Hub ASSEMBLY.

  • Adjustable Tapered Roller Bearings.
  • 1" dia Axle Bolt Included for Fork Mounting.
  • Removing fork adjuster sleeve provides 1 3/8" bearing ID for stub axle mounting
  • 6.00 x 9" Tyre

21" OD x 6 " wide
(533mm x 150mm wide)

1/2" (12mm) thickness wheel.

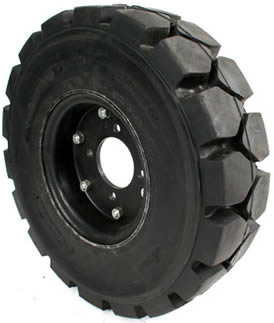

B6439

Heavy Duty Solid Cushion Tyre & Wheel.

6.00 x 9" Tyre

21" OD x 6 " wide
(533mm x 150mm wide)

1/2" (12mm) thickness wheel.

4 Stud Mount at 5" (127mm) PCD

B6420
Heavy Duty Solid Cushion Tyre.
Wheel and Hub ASSEMBLY.

  • Adjustable Tapered Roller Bearings.
  • 1" dia Axle Bolt Included for Fork Mounting.
  • Removing fork adjuster sleeve provides 1 3/8" bearing ID for stub axle mounting
  • 4.00 x 8" Tyre

16" OD x 4" wide
(400mm x 100mm wide)

1/2" (12mm) thickness wheel.

4 Stud Mount at 5" (127mm) PCD

B6421

Heavy Duty Solid Cushion Tyre & Wheel.

4.00 x 8 " Tyre

16" OD x 4" wide
(400mm x 100mm wide)

1/2" (12mm) thickness wheel.

4 Stud Mount at 5" (127mm) PCD

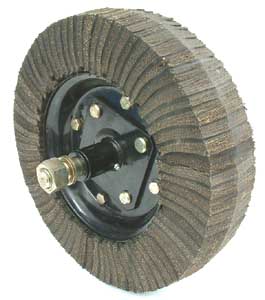

Segmented Rubber Wheel ASSEMBLY
B6440
385 mm dia x 100 mm wide
15" x 4" wide
Supplied complete with Hub
and 1" dia axle with hexagon bolt head
Taper Roller Bearing Hub (B6600)
can be fitted to this wheel.

Rim will bolt directly to machines with Cast Iron Bearing Hubs
(Howard, Bush Hog etc)

B6600
Cast Hub ASSEMBLY.
  • Adjustable Tapered Roller Bearings.
  • 1" dia Axle Bolt Included for Fork Mounting.
  • Removing fork adjuster sleeve provides 1 3/8" bearing ID for stub axle mounting

    4 Stud Mount at 5" (127mm) PCD

    Fits B6439, B6421, B6440 Wheels (above).

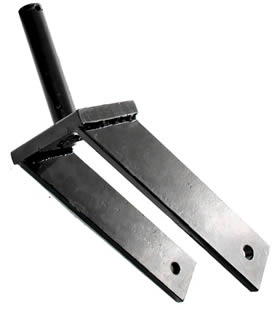

B6422
Fork for B6438 Wheel ASSEMBLY,
  • 1" dia Axle Bolt Hole.
  • 1 1/2" (38mm) Pivot Shaft
  • 6.7" (170mm) Fork Width
B6556
Fork for B6420 and B6440 Wheel ASSEMBLY,
  • 1" dia Axle Bolt Hole.
  • 1 1/2" (38mm) Pivot Shaft - 12.5" (320mm) Long
  • 5.3" (135mm) Fork Width

B6568


Mounting Arm for B6422 and B6556 Tail Wheel Forks.

For hubs to suit these wheels refer to MF Hub page

*6 HOLES - P.C.D. =152 mm (6")

B6807
Wheel ONLY

450 x 16"
Wheel size fits 600 x 16" tyre

B6808

550 x 16"
Wheel size fits 750 x 16" tyre

B8806

19"
Wheel size fits 400 x 19" tyre

For hubs to suit these wheels refer to MF Hub page

*6 HOLES - P.C.D. =152 mm (6")

B8807

450 x 16"
Wheel fitted with 600 x 16" Tri-Rib Agricultural tyre & tube

B8808

550 x 16"
Wheel fitted with 750 x 16"Tri-Rib Agricultural tyre & tube

For hubs to suit these wheels refer to MF Hub page

*6 HOLES - P.C.D. =152 mm (6")

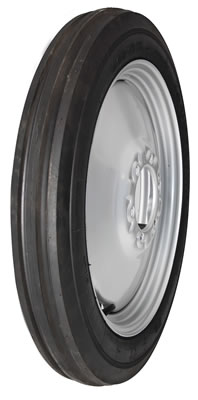

B8809

Wheel fitted with 400 x 19" Tri-Rib
Agricultural tyre & tube

Fits Ferguson Te20

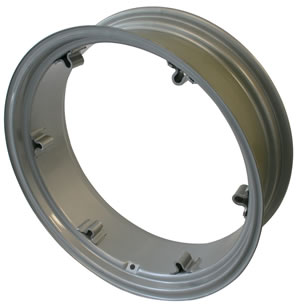

Rear Wheel Rim
B6809
9" x 28" fits 11 x 28 tyre

Replaces: 827187M91, 83923862

B7864
10" x 28" fits 12.4 or 11.2 x 28 tyre

B7865
12" x 28" fits 13.6 x 28 tyre

Applications:
All Ferguson MF models with above wheel size
All Ford NH models with above wheel size
All Case IH models with above wheel size
Most other British Tractors with above wheel size.

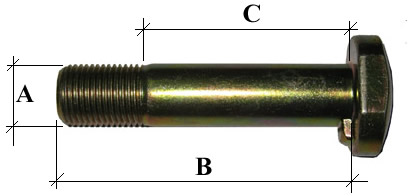

Wheel Rim Bolt
B3784

Suits ABOVE Wheel / Rim

PART No
A
B
C
B3784
5/8" UNF
2 7/8"
2"
B2154
5/8" UNF
NUT
