Parts to Suit Vicon Wheel Rake
Parts -Vicon & Sitrex Wheel Rake

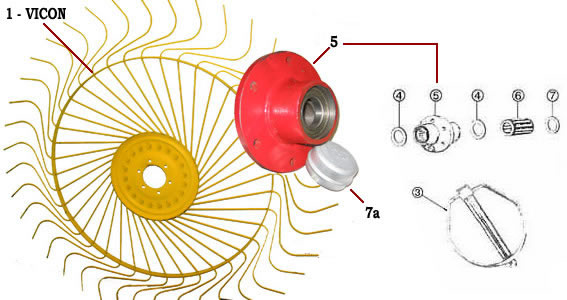

Rake Wheels, Tines and Hubs


Wheel Mounting Bolt Pattern
6 Bolt Holes 0.4" (10mm dia)
Bolt Holes PCD 5.12" (130mm)
Hub Pilot Hole 3.3/4" (95mm)

REF
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B5812
93345
RAKE WHEEL
TWIST HOOK TINES
"A" = 11.8" (30cm)
Vicon Acrobat
Early Massey Ferguson

2299060,
95347,
RW36134,
TNP20BV001,
V90095347Z,
5XFP20BV001,
90095347

R.H.WHEEL
FLAT HOOK TINES
"A" = 9.8" (25cm)

Vicon Sprintmaster
All Vicon Flat Tyne "V" Rakes

Bush Hog Wheel Rake:
BSR8, BSR10, BSR12

Frontier Wheel Rake:
WR1008, WR1010, WR1012, WR2010E
WR2012E, WR2014E, WR2110, WR2114
WR2212, WR2214, WR2316, WR4106
WR4109, WR4313

John Deere Rake:
702, 704
Tonutti Wheel Rake:
P2, P3, P4, P5, P6, RCS8, RCS10, RCS12

2299061,
95862,
RW36135,
TNP20BV002,
5XFP20BV002 V90095862Z,
90095862
L.H.WHEEL
FLAT HOOK TINES
"A" = 9.8" (25cm)

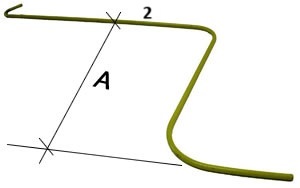

2
36133
Tine Flat Hook (40 per wheel)
"A" = 9.8" (25cm)
Vicon Sprintmaster
All Vicon Flat Tyne "V" Rakes
92611
Tine Twisted Hook(40 per wheel)
"A" = 11.8" (30cm)
Vicon Acrobat
Early Massey Ferguson
3
900 94887
Large Linch Pin
ALL Vicon Rakes and most Rakes with
1 3/8" (35mm) dia Rake Wheel Axles
4
900 91571
Plate - 2 Req
Early Type Roller Bearing 1 1/4" Shaft
5
Late Type Hub including Sealed Bearings
ALL Vicon Rakes and most Rakes with
1 3/8" (35mm) dia Rake Wheel Axles
6
900 91649
Early Type Roller Bearing
Early Type Roller Bearing 1 1/4" Shaft
7
900 91482
Plate - 1 Req ALL Vicon Rakes and most Rakes with
1 3/8" (35mm) dia Rake Wheel Axles
7a
Hub Cap - fits late type hub

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
