Hydraulic Cylinders
Hydraulic Cylinders

WELDED CYLINDERS WITH ASAE TYPE CLEVIS ENDS

Heavy Duty High Pressure Cylinders with hard Chromium Plated Piston Rod
Rated Working Pressure 3000 PSI (20,685 kPa)
Replaces ASAE low pressure Tie Rod Cylinders shown below.

Part No.

Bore

Stroke

Shaft Diameter

Closed Length

Port Size

Pin Diameter

Seal Kits
1.5"
4"
7/8"
14 1/4"

9/16" UNF
UN O-ring

1"

6"
16 1/4"
2"
8"
1 1/4"
20 1/4"
3/4" UNF
UN O-ring

See Adaptor
Below
10"
20 1/4"
12"
22 1/4"
14"
24 1/4"
18"
28 1/4"
24"
34 1/4"
48"
58 1/4"

B3087

2 1/2"

6"

1 1/2"
16 1/4"

B3031

8"

20 1/4"

12"
22 1/4"
12"
24 1/4" Long Body
18"
30 1/4" Long Body
24"
36 1/4" Long Body

B3029

3"

8"

20 1/4"

B3030

12"

22 1/4"

12"
24 1/4" Long Body
16"
28 1/4" Long Body
18"
28 1/4"
18"
30 1/4" Long Body
24"
36 1/4" Long Body
3 1/2"
8"
1 3/4 "
20 1/4"
16"
28 1/4" Long Body
24"
36 1/4" Long Body
4"
8"
2"
20 1/4"
12"
22 1/4"
18"
28 1/4"
24"
34 1/4"

Thread Adaptor - High Pressure Rams to NPT Hose
  "A" "B"
Adaptor
B3440 3/4" UNO 1/2" NP

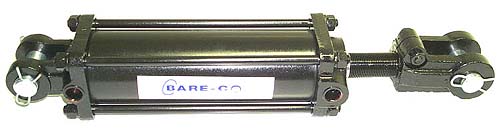

TIE ROD CYLINDERS ASAE TYPE

Rated Working Pressure 2500 PSI (17,237 kPa)
Double Ported Heads for Convenient Hose Connection
Hard Chrome Plated Piston Rod

Part No.

Bore

Stroke

Shaft Diameter

Closed Length

Port Size

Pin Diameter

Seal Kits

B3022

2"

8"

1 1/8"

20 1/4"

3/8"NPTF

1"

B7434

2 1/2"

B3013

12"

22 1/4"

B3015

3"

8"

1 1/4"

20 1/4"

1/2" NPTF

B3016

12"

22 1/4"
16"
26 1/4"

B3020

18"

28 1/4"

B3014

3 1/2"

8"

20 1/4"

B3024
4"
1 1/2"

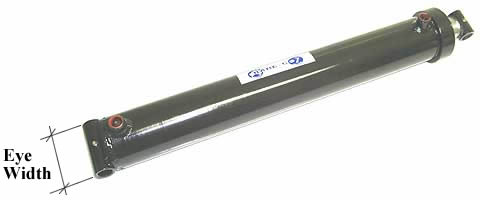

WELDED TYPE CYLINDERS WITH INDUSTRIAL TYPE PIN EYES


Rated Working Pressure 3000 PSI

Part No.
Bore
Stroke

Shaft Diameter

Closed Length
Port Size

Eye Diameter

Eye Width
Seal Kits

Body End

Rod End
2"
8"
1 1/4"
15"
3/4"UNF
3/4"
2 5/8 "
1 3/4"
2 1/2"
12"
1 1/2"
20"
3 1/8"
2"
2 1/2"
18"
1 1/2"
26"
3 1/8"
2"
2 1/2"
24"
1 1/2"
32"
3 1/8"
2"
3"
18"
1 3/4"
26"
1"
3 5/8 "
2 1/4"
3"
24"
1 3/4"
32"
3 5/8 "
2 1/4"
3 1/2"
24"
2"
32"
4 1/8"
2 1/2"
4"
20"
2 1/4"
32"
1 1/4 "
4 3/4"
4"

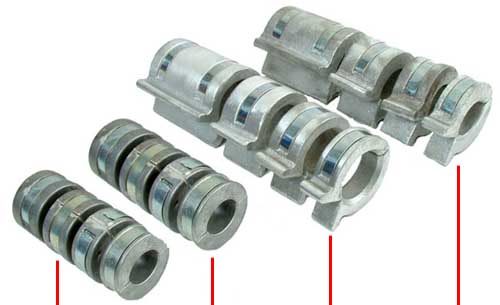

STROKE LIMITING COLLARS

B7435
Fits 1 1/8" to 1 1/4" dia
Piston Rods
B7436
Fits 1 3/8" to 1 1/2" dia
Piston Rods
B6436
Fits 1 3/4" to 2" dia
Piston Rods
B6435
Fits 1 1/2" to 1 3/4" dia
Piston Rods

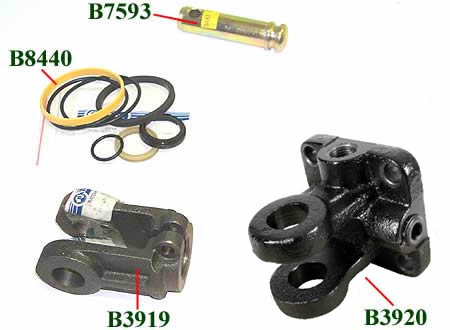

CYLINDER SPARE PARTS

Cylinder
Description

Original Cyl
Part No.

Seal
Kit

Clevis
Rod End

Clevis
End Cap

Ram
Pin

BARE-Co (Black) Tie Rod Cylinders

8" x 2"... 1 1/8" Piston Rod

B3022

B8431

B3915

B3917

B7593
1" dia. fits 2 5/8" Clevis width

B1200
1" dia. fits 3" Clevis width

8" x 2 1/2"... 1 1/8" Piston Rod

12" x 2 1/2"... 1 1/8"Piston Rod

8" x 3"... 1 1/4" Piston Rod

B3015

B8440

B3919

B3920

12" x 3"... 1 1/4" Piston Rod
16" x 3"... 1 1/4" Piston Rod

18" x 3"... 1 1/4" Piston Rod

8" x 3 1/2"... 1 1/4" Piston Rod

B3014

B8438
8" x 4 "... 1 1/4" Piston Rod

Refer
General Section
Top Link Pins

BARE-Co Welded Cylinders

Seal Kits shown in the application chart at the top of the page (with ORANGE background)
