Hydraulic Remote Control Valves 1
Remote Control Valves
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
BARE-Co REMOTE CONTROL VALVES
12 US Gal/min - 45 Ltrs/min
  • fully adjustable relief valves pre-set at 2000 P.S.I.
  • dual location (side & top) Supply & Return ports
  • blanking plugs supplied for alternate Supply / Return ports
  • all ports standard 3/4" UN "O" Ring
  • vertical or horizontal handle mounting

eg: alternate Handle Mounting

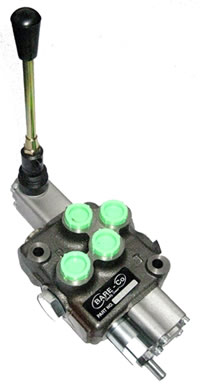

B8472

Single Spool
Double Acting
Open Centre

* Adaptable to
Closed Centre
See below

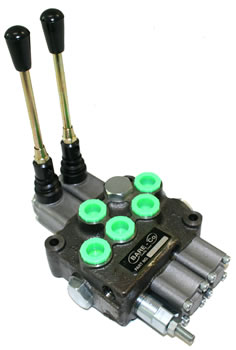

B8473

Double Spool
Double Acting
Open Centre

* Adaptable to
Closed Centre
See below

B8474

Double Spool:

  • one Double Acting
  • one Single Acting

    • Open Centre

    * Adaptable to
    Closed Centre
    See below

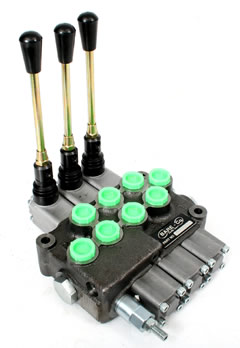

    B8475

    Three Spool
    Double Acting
    Open Centre

    * Adaptable to
    Closed Centre
    See below

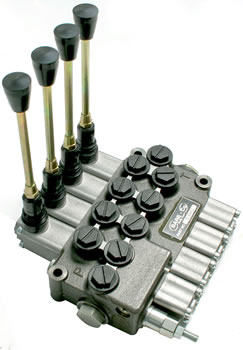

    B8482

    Four Spool
    Double Acting
    Open Centre

    * Adaptable to
    Closed Centre
    See below
    * For Closed Centre applications order B8476 Power Beyond - Closed Centre Kit
    and adjust the relief valve in the Control Valve so that it is above pump pressure.
    See     TECHNICAL INFO for explanation of Closed/Open Centre and Power Beyond terms
    CONVERSION KITS for 12 Gal / 45 ltr VALVES
    B8476
    Power Beyond /
    Closed Centre
    Adaptor
    B8477
    Handle Detent Kit
    Allows handle to remain in any of 3 positions

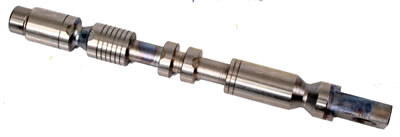

    B8478
    Hydraulic Motor Control Spool

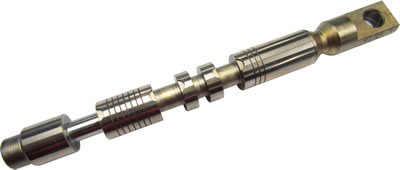

    B8479
    Single Acting Spool
    SPARE PARTS to suit 12 Gal / 45 ltr VALVES

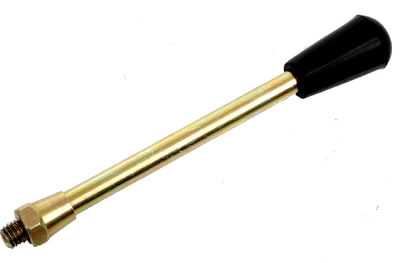

    B8480
    Handle

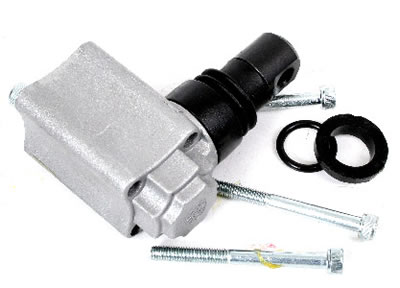

    B8481
    Handle Housing Kit
