LANDINI Models "LUK" Types Clutches
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only
11"&
12"LUK
Type Dual Plate Clutches
|
|
APPLICATION
LANDINI
TRACTORS
|

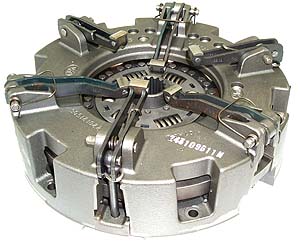

Clutch
Kit
Full kit includes clutch assy, plates and all bearings
shown.
|
Clutch
Cover
|
Main
Drive Plate
|
PTO
Plate
|
Release
Bearing
|
Pilot
Bearing
|
Following
Models when equipped with 11" Dual Clutch |
65,
75, 85, 254, 274, 284, 364, 374, 394, 4530, 4830, 4860,
5500, 5830, 5840, 5860, 5870, 6030, 6040, 6060, 6500,
6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7550,
7560, 7860, 7870, 8550, 8860, 8870
Advantage 65, 75, 85
Atlas 70, 75, 80 + DT
Blizzard 50, 60DT
C75, 85
Rex 70, 80 +DT
Trekker CF65, 70, 75, 80, 85
|
B9284
11"
Organic Clutch
|
Your
|
|
Choice
|
B9285
11"
Ceramic Clutch
|
B6735
= 3300000M99
Organic
Main Plate Included
- NOT P.T.O.
|
Your
|
|
Choice |
B6736
=3304585M94
Ceramic
Main Plate Included -
NOT P.T.O.
|
Organic
B6737
=3311538M92
11" x 1.57"
14 splines sprung hub
|
Your
|
|
Choice
|
Ceramic
Pads
B6739
=3311326M91
|
B2864
=
1424135M91
11" x 0.984"
10 Splines Organic
|
MAIN
B503
=1423473M91
P.T.O.
B2878
1442381X1
|
B3640
=339599X1
|
Following
Models when equipped with 12" Dual Clutch |
65,
75, 85, 6560, 6860, 6870, 6880, 7560, 7860, 7870, 8860,
8870
Advantage 65, 75, 85
Atlas 70, 75, 80 + DT
Blizzard 50
Rex 70, 80 +DT
Trekker CF65, 75, 85 |
B9286
12"
Clutch Kit
|
B7507
=3532192M94
(12")
Main Plate Included -
NOT P.T.O.
|
B7532
=3105232M92
12" x 0.984"
14 splines
Ceramic Pads Sprung Hub
|
B7533
=3105233M91
12" x 0.984"
10 splines
Organic
|
Following
Models all 12" only |
7880,
8080, 8880, 9060, 9080, 9880,
Advantage 95
Atlas 90, 100
Blizzard 65, 75DT, 85, 95DT
Ghibli 8oDT, 90DT, 100DT
Rex 90 +DT
Trekker 75, 90, 95, 100 |
|
