MF - 9" / 11" Dual Plate Clutch
9" / 11" Dual Plate Clutch
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference
PRESSED METAL FINGERS - NO COIL SPRINGS

** Very early gold/grey MF35 may req. extra flywheel shims.
Confirm pedal clearance during ASSEMBLY
COIL SPRING TYPE = FORGED FINGERS
Update 11" Coil Spring Clutches with a NEW Flywheel (including Ring Gear)
and Late Type 12" Clutch.
Order "F" Kit as shown below for 12" Kit which includes Flywheel, Plates, 12" Clutch & Bearings.
* Full kit includes clutch ASSEMBLY, plates and all bearings shown.
APPLICATION
Clutch Kit
Clutch Cover
Main Drive Plate
PTO Plate
Release Brg.
Brg. Carrier
Flywheel Pilot Brg.
9" / 11" Dual Clutch
(No Coil Springs)
TO35 to serial no. 177537
Flywheel Depth = 1.314"
MH50, MF50 to ser. no. 515433
MF105, F40
UK Models:-
  MF35 4 cyl Diesel
  MF35, 135 Gasoline
B9251
*

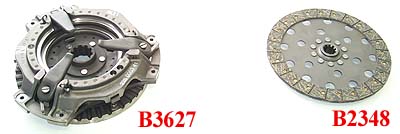

B3627
=894131M92
fits 1.314" f/wheel depth.
Early tractors may req. extra M.F. 827811M1 shims
B2348
=182841M92
899971M91
narrow 1 1/4" facing
Flat hub
11" x 1 1/8" x 10 splines
B2340
=3620411M91
899823M91
[Included In
Clutch ASSEMBLY]
9" x 1 3/4"
x 10 splines
Bearing
B2329
=833084M1
892862M1
Carrier
B2792
Std trans.
2 1/8" I.D.
=183129M2

B487
Multi Power
2 3/16" I.D.
=886727M2

B2321
=832960M3
828123M1
195174M1

9" / 11" Dual Clutch
(With Coil Springs)
10 Spline PTO Plate
Flywheel Depth = 1.3/4"
TO35 from serial no. 177538
MF50 from serial no. 515434
MF35
MF135, 150 with:-
  11" clutch and,
  10 spline PTO Plate
B9252
B9252F
*
6 red springs

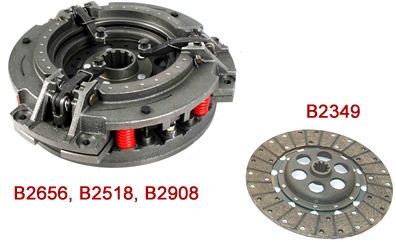

B2518
=526666M91
6 red springs
Main Plate NOT Included

H.Duty option for MF50
B2656
=526665M91
9 Red Springs
B2349
=516068M93
3620410M91
[NOT incl in
Clutch ASSEMBLY]
11" x 1 1/8"
x 10 splines
Dished Hub
H.D. Metal Back Facings
B9253
B9253F
*
9 Red Springs
9" / 11" Dual Clutch
As above with:-
25 Spline PTO Plate
1400 lbs clamp.
MF135, 150, 165, 175, 230, 235, 245, 255, 265
See next page for models with 12" Clutch
B3656
=532319M91
532320M91
Main Plate NOT Included
Not available separately
[Included In
Clutch ASSEMBLY]
9" x 1 5/8"
x 25 splines
9" / 11" Dual Clutch
10 Spline PTO Plate
9 Red Springs
MF65, 165

B9253
B9253F
*
B2656
=526665M91
3620402M91
Main Plate NOT Included
9 red springs
B2340
=3620411M91
[Included In
Clutch ASSEMBLY]
9" x 1 3/4"
x 10 splines
9" / 11" Dual Clutch
10 Spline PTO Plate
12 Red Springs
MF175, 180
with 11" clutch

B9254
*
B2908
=526664M91
3620403M91
Main Plate NOT Included
12 red springs
