MF Dual Clutch Components
MF Dual Clutch Components

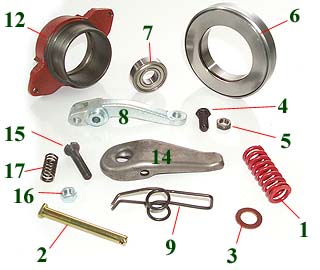

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

Ref
Part No.
Replaces
Description
Application
1
B2403
886396M1
1810813M91
Red Spring
Replaces all Colors
Note quantity used

MF35, 135, 148, 240, 245, 250 Use 6 Springs
MF65, 165, 265, 275, 355 Use 9 Springs
MF360, 365, 375, 565, 575, 675 Use 9 Springs
MF175, 285, 290, 390, 690 12 Springs
2
B2338
828597M2
"D" head pin

All MF Dual Clutches
3
B2346
1753751M2
175375M1
Insulated Washer

All MF tractors with coil spring dual clutch
4
B2333
1853164M1
Adjustment Bolt
5
B2335
353430X1
Nut (Adj Bolt)
6
B2329
833084M1
892862M1
Release Bearing
7
B2321
832960M3
828123M1
195174M1
Pilot Bearing
8
B2331
1810821M91
Finger

All 11" MF (coil spring) dual clutches
B2350
887898M1
1810816M91

All 12" MF (coil spring) dual clutches
9
B2351
887910M1
Finger Spring
B2337
1810820M91

All 11" MF (coil spring) dual clutches
See APPLICATIONS
10
B2349
516068M93
3620410M91
Main Drive plate
H.D. Metal back facing
B2359
3599462M92
Main Drive Plate
H.D. Metal back facing
12" x 1 1/8" x 10 splines

Most 12" MF (coil spring) dual clutches
Start at this APPLICATIONS page.
11
B2340
3620411M91
899823M91
9" PTO Plate
10 splines

Early models with 11" Dual Clutch
See APPLICATIONS

B2354
887900M1
10 spline
10" PTO Plate

Early models with 12" dual clutch
See APPLICATIONS
B2888
3478359M91
1043282M91
1865836M91
25 spline
10" PTO Plate

Late models with 12" dual clutch
See APPLICATIONS
12
B2792
183129M2
Bearing
Carrier
2 1/8" i.d.

All with Standard transmission
B487
886727M2
2.2" i.d.

All with Multipower transmission
13
B2348
182841M92
899971M91
11" Main Plate

Early TO35, MF105 Dual Clutch Imported
MF35 - 4 cyl diesel and gasoline models
Old style Belleville spring clutch
(No coil springs)
14
NLA
1810823M91
Finger
15
NLA
181121M1
Adjust Screw
16
NLA
353917X1
Lock Nut
17
NLA
1810812M91
Finger Spring
