MF - 12" LUK Split Torque Clutches
13" LUK Split Torque Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only
13" LUK (Cast Iron Cover) Split Torque Clutches
(Single Clutch Plate - 25 Spline PTO Drive Hub)

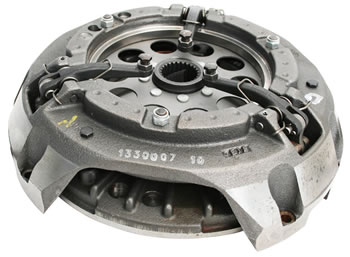

B7534

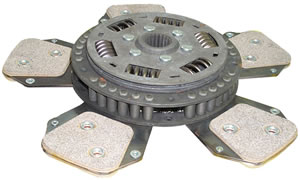

B7535
PROBLEMS ?
If so see ...

Technical Advice
APPLICATION
Clutch Kit
Clutch Cover
Clutch Plate
Release Bearing
Pilot Bearing
MF390T, 398T, 399 with Coil Spring single clutch (illustrated)
MF398, 699, MF1004/T with 21 spline plate
MF698 French Production Only with 21 spline main plate.
Pot Flywheel

B9273
*

B7534
=3599492M91
=3599492M91

B8535
=1688207M91
=3701011M91
13" x 1 1/8"
21 splines
Ceramic
Sprung Hub
3/8" Thick

B2329
=833084M1
892862M1

B2321
=832960M3
828123M1
195174M1
MF298, MF698, MF592, MF595, MF1004 UK models only with 10 spline main plate.
Flat Flywheel

B5860

B5859
=
1671692M91

B9034
13" x 1 1/8"
10 splines
Ceramic
Rigid Hub
MF298, MF698T (10 spline main plate)
MF 1004/T with 10 spline main plate

B9275
*

B7534
=3599492M91
MF390T, 398T, 393, 399 with Diaphragm clutch [illustrated]
4245, 4255, 4260, 4263, 4265, 4270
[13" Diaphragm Clutch]

B9276
*

B9534
=3701015M91
[Diaphragm Clutch]

B7535
=1688207M91
=3701011M91
13" x 1 1/8"
21 splines
Ceramic
Sprung hub
7/16" Thick

B9303
=3700527M1
* Full kit includes clutch assy, plates and all bearings shown.
