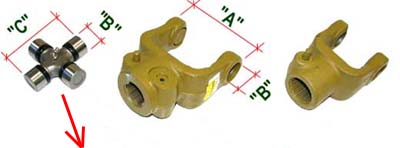

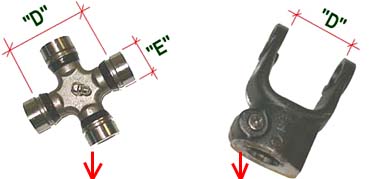

APPLICATIONS
|
CROSS
|
QUICK RELEASE SPLINED END YOKES |
|
57mm
approx |
19mm
|
52mm
|
Small round bore joints e.g. Grain augers
|
A165
|
|
62mm
approx
|
22mm
|
54mm
|
Standard triangle tube shafts
BARE-Co & BYPY 1 Series
|
A110
|
A110138
1 3/8" x 6
splines
|
|
|
|
62mm
approx
|
22mm
|
55mm
|
Lemon profile shafts (W'schied)
+ non standard shafts
|
A010=10.01.00 |
A010138 =10.10.00
1 3/8" x 6
splines
|
|
|
|
68mm
approx
|
23.8mm
|
61mm
|
BARE-Co & BYPY 2 Series
WALTERSCHEID -
H.SPICER
1140 Series
|
A220=20.00.00 |
A220118 =20.27.00
1 1/8" x 6
splines
|
A220138 =20.10.00
1 3/8" x 6
splines
|
A220121 =20.18.00
1 3/8" x 21
splines
|
|
77mm
approx
|
27mm
|
70mm
|
BYPY 3 Series
WALTERSCHEID W1 Series
|
A311=11.03.00 |
A311138
1 3/8" x 6
splines
|
|
|
|
83mm
approx
|
27mm
|
74.6mm
|
BARE-Co 4 Series
BYPY 4 Series & SFT4 Series
WALTERSCHEID W210, W2300 Series
H.SPICER 1300 Series & JAYBEN
|
A421=21.00.00 |
A421118 =21.17.00
1 1/8" x 6
splines
|
A421138 =21.10.00
1 3/8" x 6
splines
|
A421121 =21.19.00
1 3/8" x 21
splines
|
|
88mm
approx
|
27mm
|
81.76
|
Old style H SPICER 1310 Series
shafts (Rectangular bar)
|
A1310
|
A131138
1 3/8" x 6
splines
|
|
|
|
73mm
approx
|
28.6mm
|
67mm
|
USA 14N series shafts
|
AM14
|
AM14138
1 3/8" x 6
splines
|
|
|
|
95mm
approx
|
30.2mm
|
80mm
|
BYPY 5 Series,
BYPY SFT 5 Series
BYPY SFT 6 Series
|
A500
|
A500138
1 3/8" x 6
splines
|
|
|
|
|
101mm
approx
|
30.22mm
30.18mm
|
92mm |
Standard triangle tube shafts
BARE-Co 6 Series,
BYPY 6 Series, BYPY SFT 7 Series
|
|
Difference only = .04 mm
(1 1/2 thou)
If in doubt use A622 |
|
Lemon tube shafts
WALTERSCHEID W220 Series
+ Hardy Spicer 1350 Series
|
=22.00.00 |
|
|
|
|
|
122mm
approx
|
30.22mm
30.18mm |
106.3mm |
Standard triangle tube shafts
BYPY 7 Series
|
|
Difference only = .04 mm
(1 1/2 thou)
If in doubt use A723 |
|
Lemon tube shafts
WALTERSCHEID W230 Series
+ Hardy Spicer Rectangular bar shafts
|
=23.00.00 |
|
|
|
|
84mm
approx |
24/27mm |
75/91mm |
BARE-Co & WALTERSCHEID Wide Angle Shafts
80 degree
(welded flange) wide angle joints only. |
|
BARE-Co 4 Series,
W'Schied W2380 |
=21.06.00 |
=23.38.01
1 3/8" x 6
splines |
=23.21.01
1 3/8" x 21
splines |
|
|
86mm
approx |
27/32mm |
76/94mm |
BARE-Co 6 Series,
W'Schied W2480, PW480
|
=35.06.00 |
=35.10.14
1 3/8" x 6
splines |
=35.10.16
1 3/8" x 21
splines |
100mm
approx |
32/36mm |
89/106mm |
BARE-Co 8 Series,
W'Schied W2580, PW580 |
=36.06.00 |
=36.10.10
1 3/8" x 6
splines |
=36.10.12
1 3/8" x 21
splines |
=36.18.12
1 3/4" x 20
splines |
90mm
approx |
31.75mm |
82mm |
USA 35N Series shafts
|
AM35
|
AM35138
1 3/8" x 6
splines
|
|
|
|
127mm
approx |
39mm |
110mm |
Standard USA 55N series shafts |
|
|
|
|
|
86mm
approx |
32mm |
76mm |
BARE-Co W2400 Series,
WALTERSCHEID W2400 Series, P400
|
A035=35.00.00
|
A035138 =35.10.142
1 3/8" x 6
splines
|
A035121 =35.10.02
1 3/8" x 21
splines
|
A035120 =35.18.02
1 3/4" x 20
splines
|
A035134 =35.18.00
1 3/4" x 6
splines
|
122mm
approx |
35mm |
106.3mm |
BARE-Co 8 Series
BYPY 8 Series, SFT 9 Series WALTERSCHEID W240 Series
Hardy Spicer 1480 Series
|
A824=24.01.00 |
A824138
1 3/8" x 6
splines
|
A824121
1 3/8" x 21
splines
|
A824120
1 3/4" x 20
splines
|
A824134
1 3/4" x 6
splines
|
105mm
approx |
35mm |
94mm |
BARE-Co - BYPY New 7 Series
BYPY SFT S8 & H8 Series
|
A7N
|
A7N138
1 3/8" x 6
splines
|
A7N121
1 3/8" x 21
splines
|
A7N120
1 3/4" x 20
splines
|
|
100mm
approx |
36mm |
89mm |
BARE-Co W2500 Series
WALTERSCHEID W2500 Series, P500
|
A036=36.00.00 |
A036138 =36.10.00
1 3/8" x 6
splines
|
A036121 =36.10.02
1 3/8" x 21
splines
|
A036120 =36.18.02
1 3/4" x 20
splines
|
A036134 =36.18.00
1 3/4" x 6
splines
|
115mm
approx |
42mm |
104mm |
BARE-Co - W2600 series
WALTERSCHEID W2600 series, P600
|
A026=26.00.03 |
A026138 =26.10.00
1 3/8" x 6
splines
|
A026121 =26.10.02
1 3/8" x 21
splines
|
A026120 =26.18.02
1 3/4" x 20
splines
|
A026134 =26.18.00
1 3/4" x 6
splines
|
120mm
approx |
41mm |
108mm |
BYPY new 9 Series
|
A900
|
A900138
1 3/8" x 6
splines
|
A900121
1 3/8" x 21
splines
|
A900120
1 3/4" x 20
splines
|
A900134
1 3/4" x 6
splines
|
130mm
approx |
41mm |
118mm |
BYPY 10 Series
|
A1000
|
|
|
|
|
138mm
approx |
50mm |
118mm |
BARE-Co - P700 series
WALTERSCHEID P700 series
|
A027=27.00.03 |
A027138
1 3/8" x 6
splines
|
A027121
1 3/8" x 21
splines
|
A027120 =27.84.06
1 3/4" x 20
splines
|
A027134 =27.84.04
1 3/4" x 6
splines
|
