130 HP Long Shaft Gearbox

Part No. B8667 - 1:1.92 ratio INCREASE Part No. B8668 - 1:1.467 ratio INCREASE Part No. B8673 - Reverse Rotation - as above Part No. B8670 - 1.188:1 ratio DECREASE (SUIT 1000 RPM PTO) Part No. B8672 - Reverse Rotation - as above Part No. B9670 - 1:1 Reverse Rotation Part No. B9672 - 1:1 Ratio

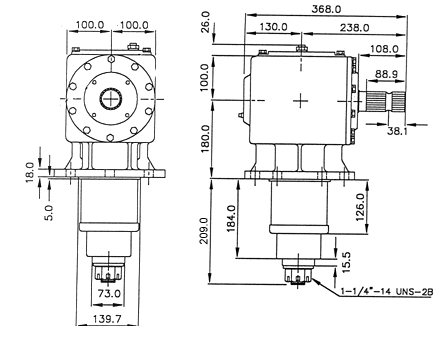

SPECIFICATIONS		A = 200mm (7.875")
HOUSING: SHAFTS: GEARS: SEALS: BEARINGS: OIL: INPUT SHAFT: OUTPUT SHAFT: 60-45-10 Nodular UNS G51200 UNS G51200 Triple Lipped, Spring Loaded Tapered Roller EP-140 1 3/4" x 20 spline 60mm Dia Standard Rotation Reverse Rotation

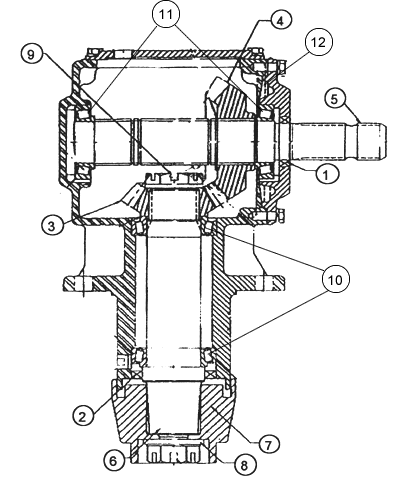

SPARE PARTS Ref Part No. Description 1 B6673 Input Seal 2 B9070 Output Seal 3 B4353 B3257 B4351 B9671 Output Gear 13 teeth 25 splines (1 : 1.92 ratio) Output Gear 13 teeth 17 splines (1 : 1.467 ratio) Output Gear 19 teeth (1.188 : 1 ratio) Output Gear 17 teeth (1 : 1 ratio) 4 B4354 B3256 B4350 B9671 Input Gear - 25 Teeth (1 : 1.92 ratio) Input Gear - 19 Teeth (1 : 1.467 ratio) Input Gear - 16 Teeth (1.188 : 1 ratio) Input Gear 17 teeth (1 : 1 ratio) 5 B3259 Input Shaft 6 B1226 B4355 Output Shaft all except B8667 Output Shaft for B8667 Gearbox 1:1.92 ratio 7 B1227 Output Hub 8 B1228 Lower Output Nut 9 B3258 Top Output Nut 10 B4358 Output Bearing 11 B4356 Input Bearing 12 B4359 Input Gasket
