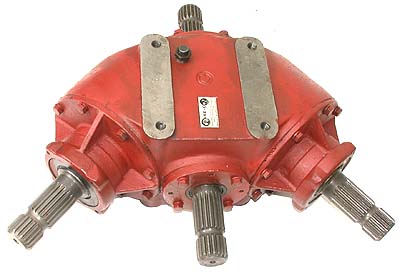

150 HP Power Divider
150 HP Power Divider
Part No. B8514 - 1:1 ratio
APPLICATIONS
SPECIFICATIONS
Multi Head -
Rotary Cutters
INPUT SHAFT:
OUTPUT SHAFT:
1 3/4" x 20 spline
1 3/4" x 20 spline

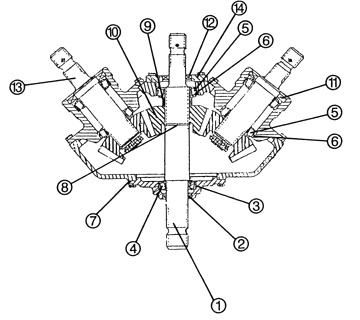

SPARE PARTS
Ref
Part No.
Description
1
Through Shaft OLD TYPE
1 3/4" x 20 spline x 1 3/8" x 6 spline
Through Shaft LATE TYPE
1 3/4" x 20 spline x 1 3/4" x 20 spline
2
Input Seal
3
Input Cap
4
Cup Bearing
5
Output Bearing Cone (5 req)
6
Output Bearing Cup (5 req)
7
Shim gasket (use qty as req.)
8
Snap ring
9
Spacer
10
Gear 18 tooth (3 req)
11
Wing Shaft Seal (2 req)
12
Rear Seal OLD TYPE 1 3/8" x 6 spline
Rear Seal 1 3/4" x 20 spline
13
Wing Shaft OLD TYPE 1 3/8" x 6 spline
Wing Shaft 1 3/4" x 20 spline
14
Output Cap
