CASE - I.H. Cooling
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only. |
|
Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION |
APPLICATION
|
|

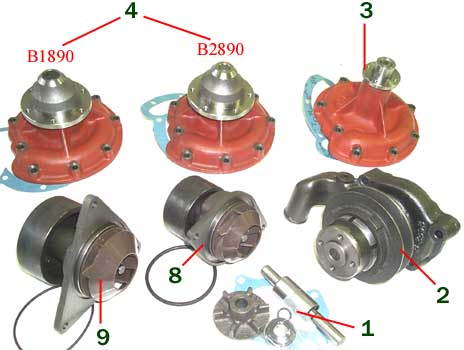

1
|
B2952
|
1094021R91
|
WATER PUMP
REPAIR KIT |
B250,
B275, 354, 374, 384, 414, 434, 444 |
|
2
|
B2898
|
703820R95
|
WATER PUMP |
B250,
B275, 354, 374, 384, 414, 434, 444
Models with Generator (NOT
Alternator) |
|
3
|
B2889
Uprated
4 3/8" (112mm)
impeller
|
3136053R92
3132739R93
|
WATER
PUMP |
544,
454, 474, 574, 674, 484, 584, 684, 784, 884,
385, 485, 585, 685, 785, 885,
395, 495, 595, 695, 795, 895, 995 +XL
3210, 4210, 3220, 4220, 3230, 4230, 4240 |
|

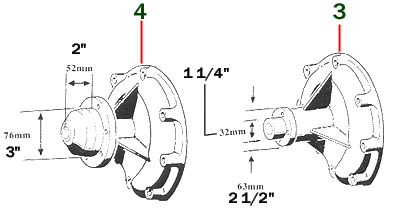

4
|
B2890
*
|
3132676R93
|
PUMP ASSY. INCL HUB
Standard Bearing
21/32" (17mm) Hub Shaft |
*Confirm
hub dimensions.
Select correct shaft diameter and use old hub on machines
with special hubs.
946, 1046, 1246, 1055, 1255, 1455 + XL
756, 956, 1056
766, 866, 976, 686, 786, 886, 986, 696, 3288 |
|
B1890 *
|
3144661R93
|
PUMP ASSY. INCL HUB
H.Duty Bearing with
15/16" (24mm) Hub Shaft |
|
5
|
B9337
|
J802970
J802358
|
|
MAXUM
MODELS
MX90, MX100, MX120, MX135
5120, 5130, 5140, 5150
CASE
1640, 1840, 1845, 752,
MX110, MX150, MX170
5230, 5240, 5250
McCormick
MTX110, MTX120, MTX135, MTX150, MTX175
|
|
6
|
B9338
|
J802479
J802975
|
MAGNUM
MODELS
7110, 7120, 7130, 7140
CASE
721, 1660, 1680
7150, 7210, 7220, 7230, 7240, 7250
8910, 8920, 8930, 8940, 8950, 9110, 9130, 9210, 9230
9240, 9250, 9260, 9310, 9330, MX180, MX200, MX220 |
7 |
B802
|
8013363
|
JX55,
JX60, JX65, JX70, JX80, JX85, JX90, JX95, JX100U, JX100C, JX1070, JX1075C
JX55T, JX70U, JX75, JX75T, JX80U, JX90U, JX100, JX1060C, JX1060V, JX1070C, JX1095N, JX1095V
55JXM, 65JXM, 75JXM, 80JXM, 90JXM,
AVJ55, AVJ60, AVJ70 |
8 |
|
82847714
87801641
87840823 |
MXM135, MXM150, MXM165 MXM180
AFTER S/N HCC0030000 Brazil Built |
9 |
|
87802496 87384588 |
MXM120, MXM130, MXM140, MXM155 MXM175, MXM190 |
10 |
|
87803065 504062854 |
JX1070U, JX1080U, JX1090U, JX1100U
MXU100, MXU110, MXU115, MXU135
MXU125
MXU100, MXU110
MXU100, MXU110, MXU115
WDX1002S, WDX1202, WDX1202S |
11 |
|
293515A1 |
WATER
PUMP
Single Thermostat
Models only.
Up to Serial No: JJE1008568 |
Case IH C70, C80, C90, C100
CX70, CX80, CX90, CX100
McCormick:
C70, C80, C90, C100
CX70, CX80, CX90, CX100 |
|
