CASE - I.H. Engine Gaskets, Valves, Liner O Rings
I.H. Engine Gaskets, Valves, Liner O Rings |
|
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only. |

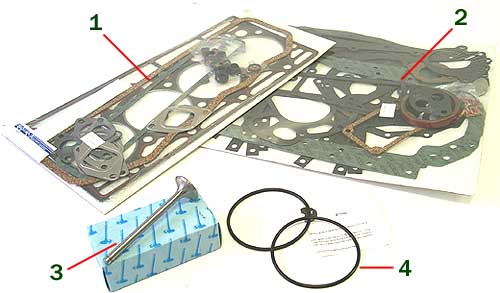

Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
1
|
B2965
|
706105R93
|
TOP
(VRS)
GASKET SETS |
B250,
B275, A414, B414, 434, 444, 354,
374, 384
(BD144, BD154 engines)
|
B3348
|
3136798R98
|
454,
484, 385, 485, 395, 495
3210, 3220 + XL (D179
3cyl engine)
|
B3349
|
3136799R99
|
624,
724, 824, 733, 833, 740, 840, 743,
644, 744, 844, 844S, 745, 845, 554, 654, 856,
474, 574, 674, 584, 684, 784, 884
585, 685, 785, 885, 595, 695, 795, 895,
4210, 4220, 3230, 4230 (D239,
206, 246 engine)
|
B5231
|
3136801R98
|
1046,
1055, 1255, 1455, 756, 956, 1056,
766, 866, 976, 686, 786, 886, 986, 3288, 696
(D310,
D358 6 cyl engine)
|
2
|
B2967
|
3041249R1
|
LOWER
CONVERSION
GASKET
SETS |
B250,
B275, 414, 434, 444
374, 384 (BD144,
BD154 engine)
|
B3350
|
3136802R98
|
454,
484, 385, 485, 395, 495
3210, 3220 + XL
(D179 3cyl engine)
|
B3351
|
3136813R99
|
624,
724, 824, 733, 833, 740, 840, 743,
644, 744, 844, 844S, 745, 845, 554, 654, 856,
474, 574, 674, 584, 684, 784, 884
585, 685, 785, 885, 595, 695, 795, 895,
4210, 4220, 3230, 4230
(D239, 206, 246 engine)
|
B5232
|
3136817R99
|
1046,
1055, 1255, 1455, 756, 956, 1056,
766, 866, 976, 686, 786, 886, 986, 3288, 696
(D310,
D358 6 cyl engine)
|
3
|
B4034
|
3040361R1
|
INLET VALVE |
B250, B275, 354 (BD144 engine)
414, 434, 444, 374, 384 (BD154 engine)
|
B3654
|
3040362R1
|
EXHAUST VALVE
Head dia = 1 1/4" (31.8mm) |
Early B250, B275
(BD144 engine)
(Up
to No. 27051)
|
B4035
|
3043825R1
|
EXHAUST VALVE
Head dia = 1 3/16" (30mm) |
Late
B250, B275 (From
27052)
414, 434, 444, 354, 374, 384 (BD154
engine)
|
B1028
|
3055055R2
|
INLET VALVE |
ALL
MODELS SHOWN THIS
PAGE EXCEPT
B250, B275, 414
434, 444, 354, 374, 384 (immediately
above)
|
B1029
|
3055056R2
|
EXHAUST VALVE |
4
|
B7506
|
3228344
+
3228348
|
PAIR OF LINER ''O'' RINGS
with instructions
(1 req per cyl) |
B7508
|
704100R1
|
LINER ''O'' RING
(1 req per cyl) |
B250,
B275, 414, 434
444, 354, 374, 384
|
I.H. Engine Gaskets, Valves, Liner O Rings |
|
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only. |
|
