Engine Kits - 6 Cylinder Models
Engine Kits - 6 Cylinder Models

Now available with a NEW CRANKSHAFT for little more than a basic regrind for most applications
3 KIT LEVELS
"EK" - FOR IN-FRAME REPAIR. Includes - Pistons, Wrist Pin Bushes, Piston Rings, Con Rod Bearings, Con Rod Lock Nuts (where fitted), Top & Bottom Gasket Sets.

"EKM" - FOR OUT OF FRAME REBUILD. Includes ALL of the above PLUS - Main Bearings (you specify under-size required at NO EXTRA COST), Thrust Washers, Front & Rear Seals.

"EKMC" - same as EKM but INCLUDING A NEW CRANKSHAFT
IMPORTANT
To reduce your Inventory levels, Bare-Co lists VALVE TRAIN KITS separately below the Engine Kit Part Numbers. Valve Train Kits will fit a range of different engine kits.

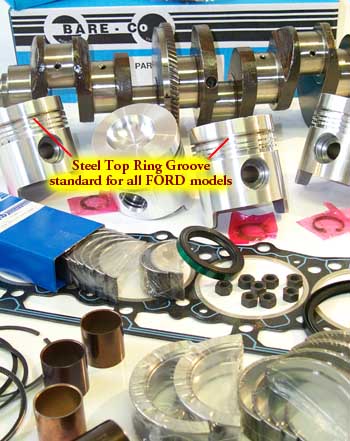

The Bare-Co QUALITY DIFFERENCE
Original heavy duty optional steel top ring groove pistons
included as standard.
Viton Rear Seals are supplied for most applications
No extra for under-size bearings
The EKMC Kit allows for INSTANT ASSEMBLY with a NEW CRANKSHAFT and Standard Bearings straight out of the box.

Application
Engine
Kit
Piston Std.
Less Rings
Ring Set
1 Cyl.
Liner
* See note below
Con Rod
Bearings
[full set]
Wrist Pin
Bush
Con Rod
Lock Nut
[each]
8000 Confirm Option
1/2 or 9/16" Head Studs

401 CID
EK97*
EKM97
*
B2672
=
EONN6108AA
1877563
Square Top Ring Groove
** B2812
=
DJPN6149W
3917468

** Square Section Top Ring
[Confirm piston top groove]

* B3591
Semi-finished Plain Liner
approx
4.587" O.D.

=
D7NN6055A
3912946



*
B3589
Flanged Liner fully finished
(block needs to be counterbored)
B1349
STD

B1350
-.010"

B1351
-.020"

B1352
-.030"

B3883
=
C5NE6207A
1803972
B293
=
3956276
7810, 7910
8210
TW5
from 4/1986
8530
401 CID
EK98*
EKM98
*
Kit contains late type B2672 pistons
Valve Train Kit:
VK14
8700, TW10
7810, 7910
8210
82 to 3/1986
401 CID
Early Type Piston with tapered top ring groove.
Replace with FULL SET of
B2672 Pistons & B2812 Rings
(shown above)

**B1240
=
DFPN6149E
3905823
** Tapered Section Top Ring
[Keystone]
[Confirm piston top groove]

9000
401 CID Turbo
N/A
N/A
B1353
STD

B1354
-.010"

B1355
-.020"

B1346
=
C9NN6207C
1819460
9700, TW15
TW20, TW25
TW30, TW35
8630, 8730, 8830

401 CID Turbo
EK99*
EKM99
*
Valve Train Kit:
VK15
B1239
=
D9NN6108FA

3919735
Tapered top Ring groove

* Liners NOT included in these kits. Order separately if required
Oversize pistons not recommended due to porosity problems with engine blocks.
Normal procedure is to bore block and liner back to standard.
All BARE-Co pistons have HEAVY DUTY STEEL Ring Lands - FIT FULL SETS.
Engine Kits - 6 Cylinder Models
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
