Ford - Steering - Radius Rod Front Axle
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.

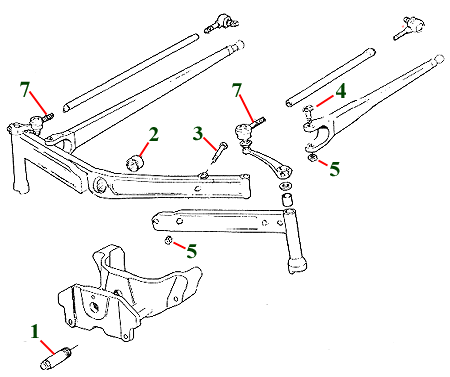

RADIUS ROD FRONT AXLE MODELS
POWER STEERING
(MODELS LESS CAB)
 |
|
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B3866
|
C5NN3127B
1812461
|
Pivot
Pin 1 3/4" dia |
2000, 3000
up to 7/1970
|
|
B3867
|
C7NN3127D
1822711
|
Pivot
Pin 2" dia |
2000, 3000
from 8/1970
2600, 3600, 4100, 2610
3610, 3910, 4110
|
|
2
|
B3870
|
C5NN3153C
|
Pivot
Bush 1 3/4" ID |
2000, 3000
up to 7/1970
|
|
B3871
|
C7NN3153B
1822712
|
Pivot
Bush 2" ID |
2000, 3000
from 8-1970
2600, 3600, 4100, 2610
3610, 3910, 4110
|
|
3
|
B2153
|
|
Axle
Beam Bolt |
2000, 3000, 2600, 3600
4100, 2610, 3610, 3910, 4110
(Non-Cab models)
|
|
4
|
B2152
|
957E3415A
|
Radius
Rod Bolt |
|
5
|
B2154
|
379223S43
|
Nut
|
|
6
|
B3302
|
C5NN3N303A|
1802878
|
Universal
Tie Rod End Boot |
|
7
|
B1343
|
C5NN3A300B
1802873
|
Front
Ball Joint - Left Hand Thread
( 2 required ) |
|
9
|
B1337
|
C5NN3307G
1802891
|
R.H.
Rear 1/2 Drag Link |
|
11
|
B1338
|
C5NN3308E
1802895
|
L.H.
Rear 1/2 Drag Link |
|
11a
|
B1439
|
|
Complete Ram Assambly
with HD 5/8" dia shaft
|
2000 (3cyl), 3000, 2600, 3600,
4100, 2610, 3610, 3910, 4110, 230A, 231, 234, 334, 530A,
531
Non-Cab models 2600, 3600, 4600, 4610
|
|
11b
|
B2205
|
|
Ball
Joint
Power Steer Ram |
|
12
|
B1344
|
C5NN3A302B
1802877
|
Ball
Joint
Power Steer Ram |
|
13
|
B1339
|
3936565
3936566
D4NN3A540A
E2NN3A540BA
|
Universal
P/S Ram
Fits L.H. or R.H.
Heavy Duty 5/8" dia Rod
(ball joint NOT incl.)
| B9408 Hose (ref 15) facilitates fitting to some models. |
|
|
14
|
B1341
|
|
|
15 |
|
CONN3A714B
CONN3A717B
CONN3C769A
CONN33C770A
|
Universal Hose - 31" long
for B1339 & B1439 Ram
( 2 required per cylinder) |
|
