GENERAL - Staybar Pins
|
STAYBAR PINS
|
 |
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|

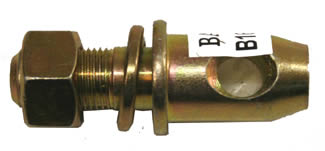

B169 Thread dia. 5/8" Head dia. 7/8"
Application: TO20, TO30, TO35, TE20, MF35, 40, 50, 135, DEXTA, 2000, 3000
|

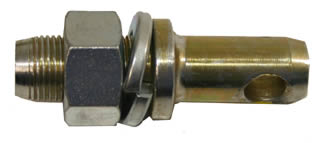

B170 Thread dia. 3/4" Head dia. 3/4"
Application: Tractor End MF65 only
|
|

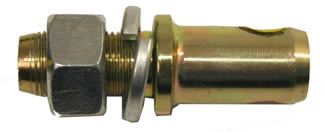

B1716 Thread dia. 3/4" Head dia. 7/8"
Application: MF148, 165, 175 (MF65 with rigid lower links)
|

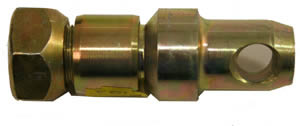

B1719 Pin & Bush set
Application: MF65, 165 with swivel end lower links
|
|

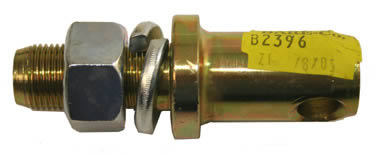

B2396 Thread dia. 3/4" Head dia. 1"
Application: when H.D. telescopic stays fitted
MF165, 168, 175, 178, 185, 188 (imp end)
|
B2635 H.Duty. Heat Treated Pin
Application: when H.D. telescopic stays fitted
MF165, 168, 175, 178, 185, 188 (tractor end)
|
|

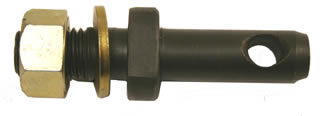

B356 Heat Treated - Thread dia. 3/4" Head dia. 3/4 "
Application: David Brown 880, 990, 995, 1200
|

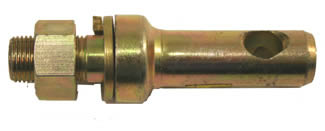

B460 H.Duty Heat Treated - Thread dia. 5/8 " Head dia. 3/4 "
Application: David Brown 770, 780, 885
|
|
