Hydraulic Motors

Hydraulic Motors

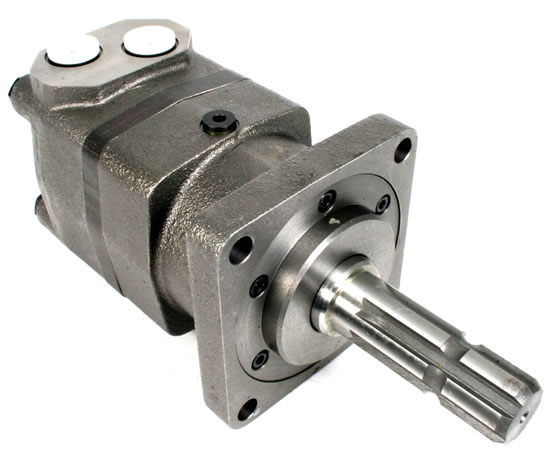

FEATURES:

Ports - 7/8" UN "O" Ring
Roller type Gear Stator
Disc Valve linked to Roller Shaft via Drive Link
Output shaft supported by tapered roller bearings.
High pressure motor seals
Cross port relief required for pressure spikes.
These motors are suitable for continuous operation under rough operating conditions such as high operating pressures, thin oil, or frequent reverse cycling. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. The drive link and balanced disc valve minimise hydraulic and mechanical losses. This design produces motors with high efficiency, even at high pressures, and good starting chracteristics.

See PREVIOUS PAGE for motor with
LOWER maximum pressure and flow.

Technical Data

PART NUMBER	SHAFT TYPE	MOTOR DISPLACEMENT	INPUT FLOW	INPUT PRESSURE	MOTOR SPEED	TORQUE	MOUNTING
B8709	1 3/8" x 6 Spline Standard Agricultural ASAE Spline Designed to Drive through Bare-co Spring Cushion Freewheel Coupling *Shown* *Below*	160cc 9.6 cu in/Rev Max. Speed: Continuous 625rpm	60 L/m 16 US gal/m	1200 psi 83 bar	380 rpm	148 ft lbs 200 Nm	See Below
				2300 psi 158 bar	380 rpm	273 ft lbs 370 Nm
				3200 psi 220 bar	380 rpm	384 ft lbs 520 Nm
			80 L/m 21 US gal/m	1200 psi 83 bar	500 rpm	133 ft lbs 180 Nm
				2300 psi 158 bar	500 rpm	258 ft lbs 350 Nm
				3200 psi 220 bar	500 rpm	369 ft lbs 500 Nm
			100 L/m 26 US gal/m	1200 psi 83 bar	630 rpm	125 ft lbs 170 Nm
				2300 psi 158 bar	630 rpm	207 ft lbs 335 Nm
				3200 psi 220 bar	630 rpm	347 ft lbs 470 Nm
B8710	1 3/8" x 6 Spline Standard Agricultural ASAE Spline Designed to Drive through Bare-co Spring Cushion Freewheel Coupling *Shown* *Below*	200cc 12.2 cu in/Rev Max. Speed: Continuous 625rpm	80 L/m 21 US gal/m	1200 psi 83 bar	400 rpm	177 ft lbs 240 Nm	See Below
				2300 psi 158 bar	400 rpm	347 ft lbs 470 Nm
				3200 psi 220 bar	400 rpm	465 ft lbs 630 Nm
			100 L/m 26 US gal/m	1200 psi 83 bar	490 rpm	162 ft lbs 220 Nm
				2300 psi 158 bar	490 rpm	339 ft lbs 460 Nm
				3200 psi 220 bar	490 rpm	461 ft lbs 625 Nm
			125 L/m 33 US gal/m	1200 psi 83 bar	610 rpm	159 ft lbs 215 Nm
				2300 psi 158 bar	610 rpm	339 ft lbs 460 Nm
				3200 psi 220 bar	610 rpm	450 ft lbs 610 Nm

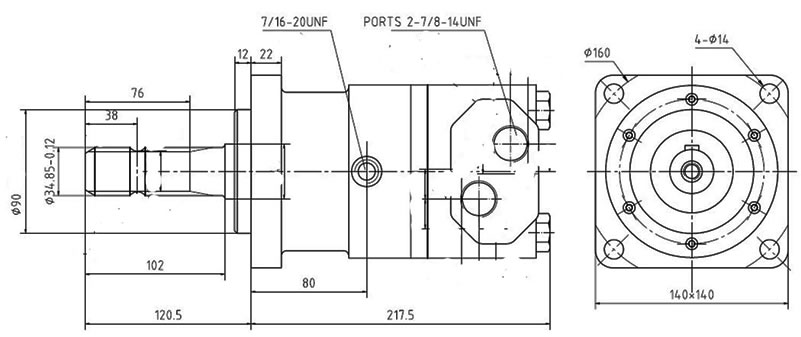

HYDRAULIC MOTOR DIMENSIONS

CUSHION / FREEWHEEL COUPLING FOR HYDRAULIC MOTORS

ESSENTIAL ITEM FOR HYDRAULIC ROTARY CUTTERS

Part No. B8507	Part No. B8508
Standard Anti-clockwise rotation	Optional clockwise rotation for dual motor application
*Bare-Co Patent*

Unique design for hydraulically driven rotary cutters
Allows hydraulic motor to run at ideal 500 / 600 rpm range.
Allows drive through standard agricultural gearbox. 1:1.47 OR 1:1.93 Ratio.
Prevents transmission impact failures by instantly absorbing a massive
1900 Nm (1400 ft lbs) of torque.
Integral freewheel eliminates transmission failure due to cutter disc inertia during hydraulic valve "STOP" condition.
Standard 1 3/8" x 6 spline female / female.

Shown below:
A typical installation with Bare-Co agricultural gearbox and Bare-Co roller type hydraulic motor.
