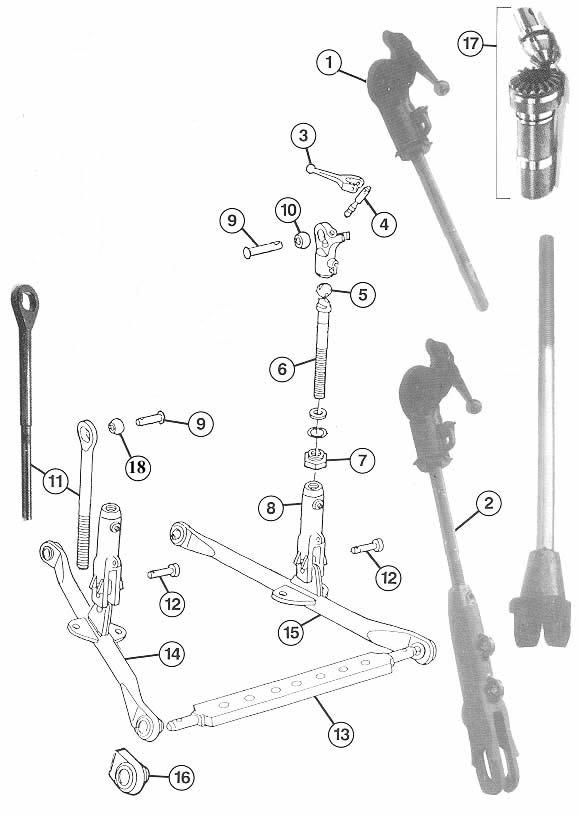

JD - Hitch Parts - 1
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7611
|
|
LEVEL
BOX HEAD ASSY
|
1020,
1120, 2020, 2120, 1030
1130, 1630, 940, 1040, 1140
(1830, 2030, 2130, 2150, 2255, 2240
2350, 2550
Early models fitted with ball drive
levelling box) identify by 45 degree input shaft
(handle) *B7611 head assy can be fitted to ALL
3/4 cylinder models as alternate to more expensive gear
drive levelling box
|
|
2
|
B598
|
|
LEVELLING
BOX ASSY
(ADJUST LENGTH 21 1/2" - 25 1/2")
|
|
3
|
N/A
|
T21559
|
HANDLE
|
|
4
|
B7612
|
T21558
|
INPUT
SHAFT
|
|
5
|
B7609
|
T22399
|
DRIVE
BALL
|
|
6
|
B7607
|
T25823
/ T25835
|
LEVELLING
BOX SHAFT
|
|
7
|
B7608
|
T21758
|
LOCK
NUT
|
|
8
|
B7606
|
R48595
|
FORK
|
1020,
1120, 2020, 2120, 1030, 1130,
1630, 1830, 2030, 2130, 940, 1040,
1140, 1640, 1840, 2040, 2040S, 2140
2150, 2255, 2240, 2350, 2550
|
|
9
|
B73
|
AT21754
|
LIFT
PIN (UPPER)
|
|
10
|
B7610
|
T21901
|
LEVELLING
ROD BALL
|
|
11
|
B7605
|
L28372
|
LIFT
ROD (18 1/2")
|
|
12
|
B1640
|
AR55695
|
LEVELLING
BOX PIN
|
|
13
|
B2722
|
L11581
|
DRAW
BAR (CAT 2)
|
|
14
|
NLA
|
AL26683
|
L.H.
LOWER LINK - 33"
|
All
above models equipped with
STD 33" links
|
|
15
|
NLA
|
AL26682
|
R.H.
LOWER LINK - 33"
|
|
16
|
B652
|
|
WELD
ON END (HEAVY DUTY)
|
All
European Models
|
|
17
|
N/A
|
AL33494
|
GEAR
KIT
|
3030,
3130, 3040, 3140
(Less Cab)
|
|
18
|
B7610
|
T21901
|
LIFT
ROD BALL
|
2140,
3030, 3130, 3040, 3140
|
|
