Front Axle, Hub - JD4030 & various
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

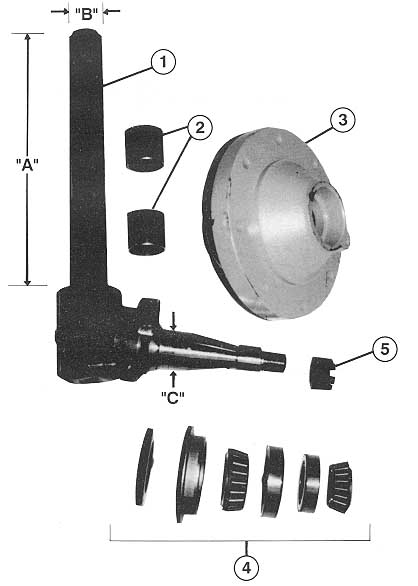

Front Axle & Hub - JD4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450


Ref.
PART No.
REPLACES
NOTES
DESCRIPTION
1
B7681
AR81954 (AR69323)
4030, 4230, 4430 tractors will require UPRATED B5476 Bearing Kit

Axle A = 14 3/4" B = 1 3/4" C = 1 31/32"

2
NLA
R49835



Bush 1 3/4" I.D.

3
N/A
R49839 (R52287)



Front Hub (6 Bolt) ROUND CAP

N/A
R49841



Front Hub (8 Bolt)

4
B5475



ORIGINAL 4030, 4230, 4430

Wheel Bearing Kit (2 req)
1 51/64" I.D. Inner Brg.

Including Wear Ring

B5476





UPRATED 4030, 4230, 4430
+ All above

Wheel Bearing Kit (2 req)
1 31/32" I.D. Inner Brg.

Including Wear Ring

5
B7388
14H920


Castellated Nut 1"
