JD - Front Axle, Hub, Wheel
|
Front
Axle, Hub, Wheel - HEAVY DUTY
|
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
HEAVY DUTY
axle models only
IDENTIFICATION:
1 3/4" dia. King Pin ( STANDARD
DUTY has 1 1/2" King Pin)
|
Fits
or Optional
for the following Models
(Confirm Dimensions)
|
1020, 1520
2030
2840, 2940
2150, 2350, 2550, 2750, 2950
2155, 2255, 2355, 2555, 2755, 2855, 2955 |
|

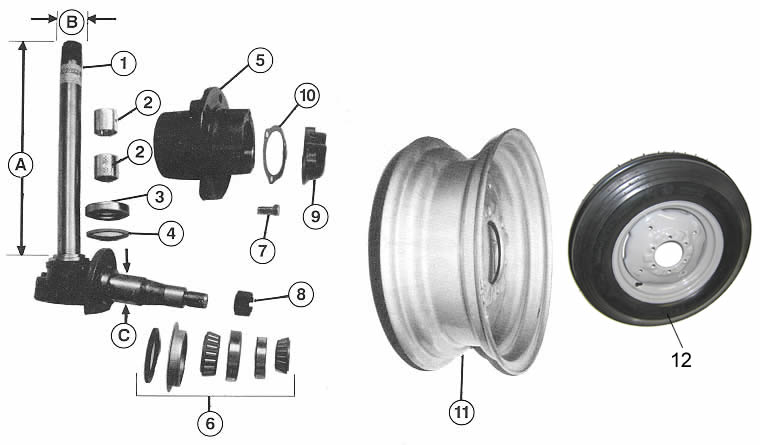

Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7671
|
AR74606
|
Axle
A = 14 3/4" B =1 3/4" C = 1.8"
|
|
2
|
B5483
|
T34546
|
Bush
(1 3/4" I.D.)
|
|
3
|
B2927
|
JD8412
|
Thrust
Bearing (1 3/4" I.D.)
|
|
4
|
NLA
|
T31749
|
Lower
Seal
|
|
5
|
B7673
|
T21545
|
Front
Hub
|
|
6
|
B5474
|
X
|
Wheel
Bearing Kit (2req) incluing WEAR RING
|
|
7
|
B5477
|
JD21
|
Wheel
Stud 9/16" (6 per wheel)
|
|
8
|
B7388
|
14H920
|
Castellated
Nut 1"
|
|
9
|
B7667
|
A1555R
|
Hub
Cap
|
|
10
|
B833
|
A1555R
|
Gasket
|
|
11
|
B6807
|
AL28212 (AL52506)
|
Wheel
to fit 600 x 16" tire
|
|
B6808
|
JD3039
|
Wheel
to fit 750 x 16" tire
|
12 |
B8807
|
|
WHEEL fitted with 6.00 X 16" TRI RIB AGRIC TIRE & TUBE |
|
B8808
|
|
WHEEL fitted with 7.50 X 16" TRI RIB AGRIC TIRE & TUBE |
|
Front
Axle, Hub, Wheel - HEAVY DUTY
|
|
|
|
