JD - Dual Clutch
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
B9508
|
|
|
|
APPLICATION
|
KIT
Incl. Bearings
|
COVER
ASSEMBLY
|
MAIN
DISC
|
P.T.O.
DISC
|
THRUST
BEARING |
FLYWHEEL
BEARING
|
|
820, 920, 1020, 1120, 1520, 2020, 2120
830, 1130, 1530, 1630, 1830, 2630
840, 940, 1040, 1140, 1640, 1840, 2040, 2240, 2255N, 2355, 2355N, 2440, 2640
1350, 1550, 1750, 1850N, 1950N, 2150, 2250, 2450
2155 |
B1685
Rigid Centre
Organic Disc
B1686
Sprung Hub
Organic Disc
|
B6841
=AL55140
(AL39624)
(Includes
PTO plate)
|
B6842
=AL23511
Rigid Centre
Organic Disc
11" x 1" x 15 splines
B6843
=AL31436
Sprung Hub
Organic Disc
11" x 1" x 15 splines
|
B6847
=AL19092
(AT21675)
9" x 1 1/2"
x 23 Splines
|
|
B890
=JD10107
|
Dual Clutch models ONLY
USA Models ONLY
| With Standard push type Safety PTO Clutch ONLY |
5200, 5210, 5300, 5310
5400, 5410, 5415
5500, 5510, 5520
5605, 5615
5705, 5715
|
|
Only available as a FULL UPGRADE KIT
Includes PTO Release Bearing Housing to upgrade models with OMG Clutches
Old clutch MUST BE REMOVED to determine Flywheel type
BEFORE ORDERING |
Fits EARLY Smooth Flywheel with 20mm (0.787") Pot Depth |
|
Fits LATE Non-Machined Flywheel after machining to 24.6 mm (0.968") Pot Depth |
Technical Information - American Built JD 5000 Series |
| Models: |
5200, 5300, 5400, 5500, 5605, 5705, 5210, 5310, 5410, 5510
5415, 5615, 5715, 5220, 5320, 5420, 5403, 5520 |
| Transmission Type: |
S/R - Sync Reverse
C/S - Collar Shift
TSS - Transmission Sync Shuttle |
| Double Clutch Identification: |
19 Spline Captive Transmission Disc |
PTO Bearing ASSEMBLY: |
|
|
The LUK clutch requires a shorter PTO bearing collar than other clutches.
Ensure that the LUK clutch is installed with the shorter 28mm PTO bearing collar which is supplied as part of the Bare-Co / LUK clutch kit. |
|
The required PTO disc is determined by the flywheel pot depth.
To select the CORRECT disc for your application, refer to the illustrations below. |
|

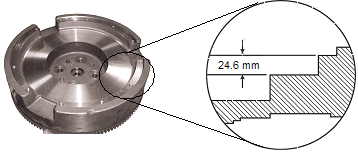

Smooth (machined) Flywheel surface
20mm Pot Depth
|
Order B9608 Clutch Kit
(contains 7mm thick PTO Plate) |
|
|
|

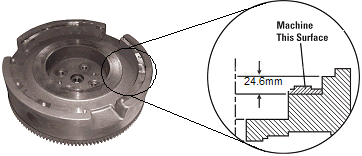

Rough (not machined) Flywheel surface
Machine flywheel to 24.6mm Pot Depth as shown to the left.
|
|
|
|
AFTER MACHINING
|
Order B9508 Clutch Kit
(contains 12mm thick PTO Plate) |
|
|
|
