MF - Front Axle
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
 |

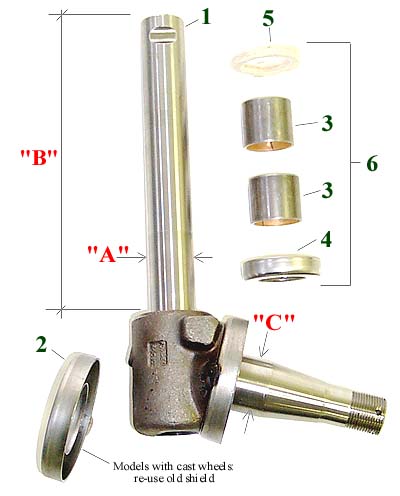

Keyway Position
Models with Radius Rods
|
RH Axles have
the keyway here
 |
 |
LH Axles have
the keyway here
 |
|
|
Application
|
Axle
Size
|
1
|
2
Dust Shield
|
3
Bush
|
4
Thrust
Bearing
|
5
Spindle
Seal
|
6
King Pin
Repair Kit
|
|
LH
Axle
|
RH
Axle
|
|
Te20
MF35
(see below for few very late models)
|
A=32mm
B=295mm
C=32mm
|
B520
=
180349M92
|
B521
=
180346M92
|
N/R
|
B2150
=
180345M1
|
B2151
=
195175M1
|
B112
=
180355M1
|
B278
(2 REQ)
|
|
Very
lateMF35 after 368616,
MF135
MF148, 230, 240, 250
|
A=32mm
B=280mm
C=35mm
|
B526
=
897237M93
|
B527
=
897236M93
|
B7393
=
897232M1
|
|
MF65
Std Duty
Std Clearance
|
A=32mm
B=295mm
C=32mm
|
B522
=
897570M91
|
B523
=
897569M91
|
N/R
|
B2161
=
196060M1
|
B279
(2 REQ)
|
|
Very
late MF65
After Ser. No. 601685
|
A=32mm
B=295mm
C=35mm
|
B273
|
B274
|
|
MF65
Std Duty
High Clearance
|
A=32mm
B=455mm
C=32mm
|
B524
=
897572M91
|
B525
=
897571M91
|
|
MF65
Heavy Duty
|
|
N/A
|
N/A
|
B2162
=
183086M1
|
B2163
=
196167M1
|
B113
=
183021M2
|
B281
(2 REQ)
|
|
Standard
Duty
(NON Australian Spec.)
MF165, 168, 265, 275
550, 565
|
A=38mm
B=295mm
C=35mm
|
B7066
=
897231M94
|
B7067
=
897230M93
|
B7393
=
897232M1
|
|
Low
Clearance H.D.
(Australian) MF165, 265
|
A=38mm
B=260mm
C=46mm
|
B2157
=
898222M95
|
B2158
=
898221M93
|
B7392
=
898350M1
|
|
High
Clearance H.D. (AUST)
MF165 + ALL Australian
MF168, 185, 188, 265, 275,
285, 290, 565, 575, 590, 675, 690 + LATE MF175,
178
H.D. Std Clearance from Ser. No. 724937
|
A=38mm
B=335mm
C=46mm
|
B2159
=
897476M95
|
B2160
=
897475M93
|
|
Early
MF175, 178 H.D.
Standard Clearance
to Ser. No.724936
|
A=38mm
B=380mm
C=46mm
|
B5201
=
897386M95
|
B5202
=
897385M95
|
N/R
|
|
MF175,
178
H.D.
High Clearance
|
A=38mm
B=403mm
C=46mm
|
B6793
=
883570M93
|
B6794
=
883569M93
|
B7392
=
898350M1
|
|
MF175,
178
Std. Duty
NOT Australian Spec.
|
A=38mm
B=352mm
C=35mm
|
B284
=
897457M96
|
B285
=
897456M96
|
N/A
|
|
MF1080
ALL + MF1085
Standard Duty
|
A=38mm
B=400mm
C=35mm
|
B276
L.H. + R.H.
=508572M92
|
MF1080
+ MF1085
Heavy Duty
|
A=38mm
B=400mm
C=46mm
|
B9841
L.H. + R.H.
|
|
