Ref
|
Part
No.
|
Replaces
|
Description
|
Length
|
Application
|
|
Min.
|
Max.
|
|

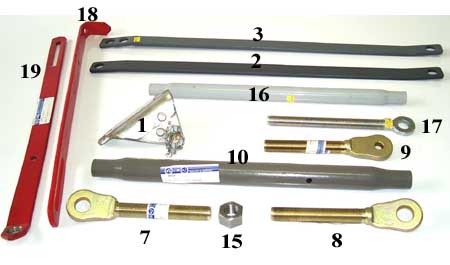

1
|
B160
|
646105M1
|
L.H.
Stay Bracket |
|
|
TO20, TO30, TO35, Te20, MF35, 40, 50
,
early MF135 |
|
B161
|
646100M1
|
R.H.
Stay Bracket |
|
2
|
B177
|
646102M1
|
Rigid
Stay Bar |
31
1/2"
|
31
1/2"
|
TO20,
TO30, Te2 , MF35 with
32" Lower Links |
|
3
|
B178
|
562620M1
|
31
1/2"
|
33"
|
Universal
fits TO20, TO30, TO35, Te20, MF35, 50, 135, 150 |
|

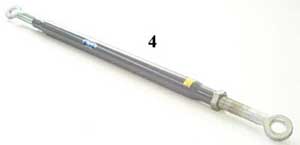

4
|
B158
|
562653M91
936112M91
|
Heavy
Duty Stay Bar with extra adjustment
Large 7/8" dia. thread
7/8" dia. eyes |
26"
|
37"
|
Te20, MF35, 135
+ following models equipped with standard (thin type)
tubular stay bars (7/8" dia. pins)
MF165, 175 |
|
B180
|
184568M91
|
Tubular
Stay Bar |
29"
|
35"
|
MF65
only (small 3/4" eye tractor end)
Can fit B158 HD bar with B1716
stay pin (SEE) |
|

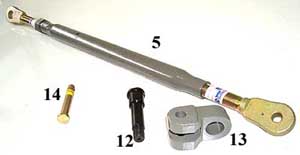

5
|
B498
|
|
Extra
HD Orig. Equip. type Stay Bar with 1" dia. eye at
implement end
5/8" dia. tractor end |
|
|
MF165, 175, 1080, 1085
Equipped with heavy duty stabilizer equip.
(1" pin eye - large dia. tube cast iron stay brackets)
|
|

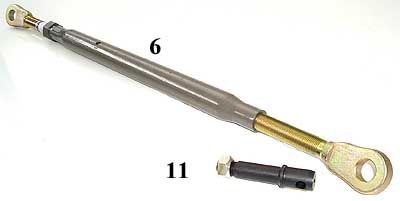

6
|
B499
|
|
Upgrade
Kit for above application includes G.8. H.T. slip
on type stay pin + HD. 1" dia. stay end to replace original
5/8" dia. knuckle joint |
|
|
|
7
|
B493
|
|
R.H.
Thread End 1" eye |
THREAD
1"
UNF
|
|
8
|
B494
|
|
L.H.
Thread End 1" eye |
|
9
|
B495
|
936621M1
|
L.H.
Thread End 5/8" eye |
|
10
|
B496
|
3289257M1
|
Centre
Tube |
|
11
|
B497
|
|
Conversion
Pin |
|
12
|
B2635
|
521006M1
|
Original
Type Pin |
|
13
|
B4421
|
514992M2
|
Original
Type Knuckle |
|
14
|
B1640
|
|
Pin
5/8" dia. |
|
15
|
B1503
|
|
Lock
Nut |
|
16
|
B2588
|
|
55cm
Centre Tube |
THREAD
7/8" UNF
|
Fits B158 heavy duty stay bar |
|
17
|
B2127
|
|
L.H.
Thread End |
|
B2128
|
|
R.H.Thread
End |
|
|
Original
3/4" UNF ends should be replaced with B158 H/Duty
Stay Bar (more economical)
|
THREAD
3/4" UNF
|
Original
MF type 3/4" UNF (thin) stay bars |
|
18
|
B141
|
181986M1
|
Upper
Drawbar Stay
(2 req.) |
|
To20,
To30, Te20
(order Upper + Lower for each of these)
MF35, 135, 240 |
|
19
|
B142
|
181985M1
|
Lower
Drawbar Stay
(2 req.) |
|
