MF - SINGLE DIAPHRAGM TYPES
13" & 14" VALEO Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only
13" & 14" VALEO Type Single Diaphragm Clutches



Latest "LUK" update kit supplied

PROBLEMS ?
If so see ...

Technical Advice

Application
Clutch Kit
Clutch Cover
Main Drive Plate
PTO Plate
Release Bearing
Pilot Bearing

MF3050, 3060, 3065, 3070, 3080, 3090, 3055, 3075, 3085, 3095
B9278
*
B268
Latest Uprate Kit
B270
=3382760M1
3615366M1
13" x 2" x 23 splines
Rigid Centre Ceramic Discs
N/R
B1230
=
3384863M93
N/R

B268 Uprated kit should
be fitted to early tractors.

MF2620, 2625, 2640, 2645, 2680, 2685,
2720, 2725,
3505, 3525, 3545,
3610, 3630, 3650, 3660, 3670
B9283
*
B269
Latest Uprate Kit
Includes B271 plate
=3713267M00
B271
=3615367M1
Latest 8 Blade
14" x 2" x 23 splines
Ceramic 8 Pads
N/R
B1230
=
3384863M93
N/R

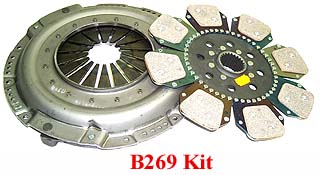

If replacing early 6 blade plate
you must fit B269 kit
(higher clamp load)

* Full kit includes clutch assy, plates and all bearings shown.
