MF - Brakes
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown for reference
only
|

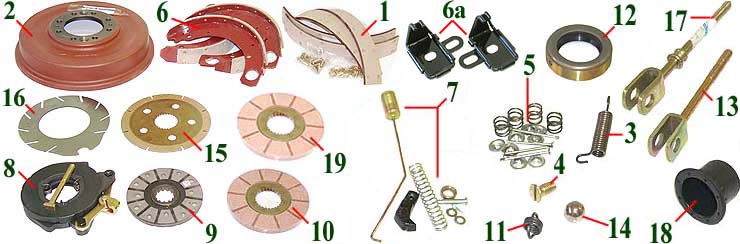

Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B1849
|
1851062M91
202631
|
Lining
Set - 2 wheels |
Te20
|
|
2
|
B6726
|
827707M5
|
Brake
Drum |
TO35,
F40, MF35, 50, 135, 150, 230, 235, 245
with drum
brakes
|
|
3
|
B5290
|
1890319M1
|
Spring
(4 req.) |
|
4
|
B1280
|
182278M1
|
Brake
Drum Screw |
|
5
|
B461
|
1810029M91
|
Fixing
Set (2 req.) |
|
6
|
|
830480M93
|
Brake
Shoe Kit
(2 wheels) |
TO35,
F40, MF35, 50, 135, 150, 230, 235, 245 |
|
B7849
|
1810517M91
|
Imported UK Model only
MF35, 135, 148, 245, 550, 240
with drum brakes |
|
6a
|
|
825590M1
825591M1
|
Pair
of Brake Centralisers |
TEA20 Imported UK Model only |
|
7
|
B5134
|
898654M92
892267M1
+ etc. etc.
|
Handbrake
Linkage Repair Kit |
MF65,
135, 148, 165, 175, 240, 250
|
|
8
|
B507
|
1822606M92
|
Brake
Actuator ASSEMBLY
(1 req. per wheel) |
Dry
brakes 6 5/8"
diameter:
MF (LANDINI) MF154, 184
MF194 up to ser. no. 2235765 |
|
9
|
B504
|
1823112M91
|
H.D.
Brake Disc (2 per wheel req.) |
|
10
|
B6366
|
1021314M92
1021314M91
|
H.D.
Brake Disc (2 per wheel req.) |
Dry
brakes 7"
diameter:
MF65, 85, 90 (all)
MF165, 175, 180, 235, 255, 265, 275, 285, 1080, 1085
Round axle housing = 7" dia. dry brakes
|
|
11
|
B5184
|
1005510M1
|
Disc
Spring
(6 per tractor) |
|
12
|
B3783
|
832954M3
|
Axle
Brake Seal |
|
13
|
B5135
|
184334M1
|
Brake
Pull Rod |
|
14
|
B462
|
211-19
16779X
|
Ball
Fits wet + dry brakes |
Dry
Brakes 7"
diameter, B462 - 5 per wheel
|
|
Wet
Brakes, B462
- 6 per wheel
|
|
15
|
B3816
|
1860964M2
|
Sintered
Metal Disc
(10 req. per tractor) |
Wet
Brakes
(square axle housing=wet brakes)
MF245, 250, 265, 275, 285, 290, 350, 355, 360,
375, 390, 398, 399, 690, 698, 699, 1085
|
|
16
|
B3817
|
1860965M2
|
Intermediate
Disc
(6 req. per tractor) |
|
17
|
B463
|
1861676M91
|
Brake
Pull Rod |
|
18
|
B7352
|
1860959M1
|
Brake
Cover Seal |
|
19
|
|
1044526M1
|
Brake
Disc
8 7/8" x 6"
27 splines |
Dry
Brakes 9"
diameter
9" dry brakes ... Square Axle Housing with seven 1/4" vertical
grooves on LH side inner = 9" dry brakes
MF165, 175, 180, 235, 255, 265, 275, 285, 1080,
1085 |
|
