MF - Steering
|

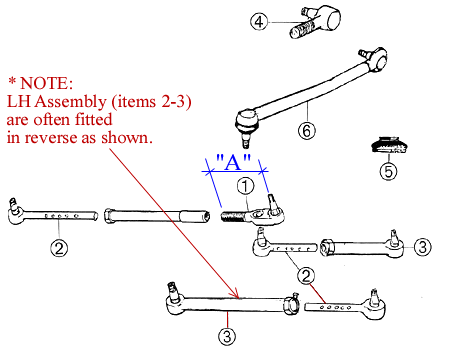

Steering MF65, early MF175, MF178 (to 724936) |
|
|
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
|
Ref.
|
Part
No.
|
Replaces
|
Description
|
Application
|
|
1
|
|
182519M91
|
RH
Inner Joint
|
A
= 150mm
|
MF65
to ser. no. 526080 |
|
|
894654M91
|
A
= 165mm
|
MF65
from ...526081 |
|
B5216
|
881889M1
|
25mm
dia thread
A = 165mm
|
Early
MF175, 178 with end
shown (to 724936)
|
|
2
|
B2801
|
880008M91
881883M91
|
Universal
Male end
suits LH & RH side
|
Outer
LH/RH MF65 std axle.
* Outer RH MF175, 178
Std - Inner LH MF175, 178
Std.
|
|
3
|
B2802
|
186061M91
|
Female
tie rod
|
Inner
LH MF65 Std - Outer
LH MF175, 178 Std
|
|
4
|
B2164
|
884701M92
|
Rear
drag link end
|
MF65,
175, 178
(All)
|
|
5
|
B3302
|
Various
|
Universal
Boot
|
Suits
most Ball Joints
|
|
6
|
B116
|
884797M91
|
One
piece drag link
(111cm long)
|
MF175,
178
(to 724936)
(confirm length)
|
|

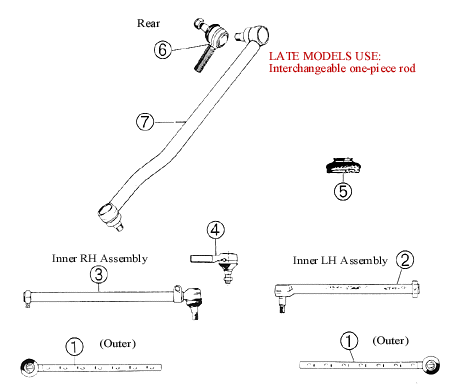

MF165-168 (MF175-178 from 724937) MF185 - 188 - 265 - 275 - 285 - 290 - 565 - 575 - 590 - 675 - 690 -
2 WHEEL DRIVE MODELS |
|
Ref.
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B2165
|
881736M92
|
Outer Tie Rod LH/RH |
MF175, 178 (from 724937)
MF165, 185, 188, 265, 275
285, 290, 565, 575, 590, 675, 690 |
|
2
|
B2166
|
886797M91
|
LH InnerTie Rod |
|
3
|
B2167
|
1810366M91
|
RH Inner Tie Rod assy. |
|
4
|
B286
|
886802M91
|
End only for RH inner tube. |
|
5
|
B3302
|
Various
|
Universal rubber boot |
Suits most ball joints |
|
6
|
B2164
|
884701M92
847451M91
|
Rear end (one piece links below interchange)
*confirm length |
MF165, 168 with repl. end (to 5616011)
MF175, 178 with repl. end (to 724936) |
|
7
|
B116
|
88479M91
|
One piece drag link (111cm long) |
MF165, 168 one piece rod from 5616012
Early MF175, 178 to ser. no. 724936 (confirm length)
MF185, 265, 275 |
|
B288
|
885549M91
|
One piece drag link (117cm long) |
MF175, 178 from 724937 (confirm length)
MF188, 285, 290 |
|
