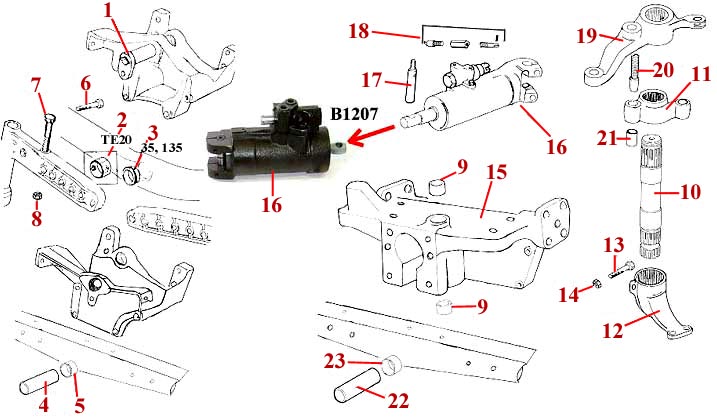

Ref.
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B932
|
183221M1
|
Axle Pivot Pin 5 1/8" Long
(7/8" dia Bolt Hole) |
TO30, TO35, FE35, MF35
MF135 up to s/n 9A86902 (Radius Rod Axle Beam) |
|
183223M1
825002M1 |
Axle Pivot Pin 4 1/8" Long
(9/16" dia Bolt Hole) |
TO20, TE20,
Imported U.K. TEA20 |
|
2
|
B934
|
180344M1
|
Thin Wall Split Bush
1 15/16" OD x 1 3/4" ID |
TO20, TE20, TEA20, early TO30 |
|
3
|
B933
|
182850M1
|
Flanged Axle Pivot Bush
2.075" OD |
Late TO30, TO35, MF35,
Early MF 135, 2135 (Radius Rod Axle) |
4 |
|
1670939M1 |
Axle Pivot Pin |
MF135 from s/n 9A86902 (Straight Axle Beam, no Radius Rods)
MF135 Vineyard,
MF235, 245 |
5 |
|
1660114M2 |
Axle Pivot Bush |
|
6
|
B2153
|
353623X1
|
Axle Beam Bolt |
TO20, TO30, TO35, FE35, MF35,
TE20,
MF135 (with Radius Rod Axle Beam) |
|
7
|
B2152
|
353643X1
|
Radius Rod Bolt |
|
8
|
B2154
|
353427X1
|
5/8" UNF Nut |
9 |
|
897235M1
194624M1 |
Bush for Main Steering Shaft (2 req) |
MF165, 175 |
10 |
|
510896M1
898359M2
1676665M1 |
Main Steering Shaft |
Tractors with Forged (Clamp-on) type lower center arm for tie rods
ie. MF165 from ser. no. 643003510 to 643011388
MF175 from ser. no. 644000638 to 644002127 Gas & Diesel |
11 |
|
194567M92 |
Steering Arm |
12 |
|
510336M92 |
Lower Center Arm for Tie Rods |
For tractors with Forged (Clamp-on) type lower center arm as above except...
... for the following tractors you must also order: B6799 Shaft; B2153 Bolt and B2154 Nut
MF165 prior to ser. no. 643003510 and...
MF175 prior to ser. no. 644000638 |
13 |
|
353623X1 |
5/8" x 3" Bolt |
For Late Type Steering Shaft shown above |
14 |
|
353427X1 |
5/8" UNF Nut |
15, 16, 17, 18, 19, 20, 21, 22, 23
|
See imported models - click below |
