H/D Clutch Shaft <a href="#" class="partNumber"><a href="#" class="partNumber">ASSEMBLY</a></a>
H/D Clutch Shaft Assembly

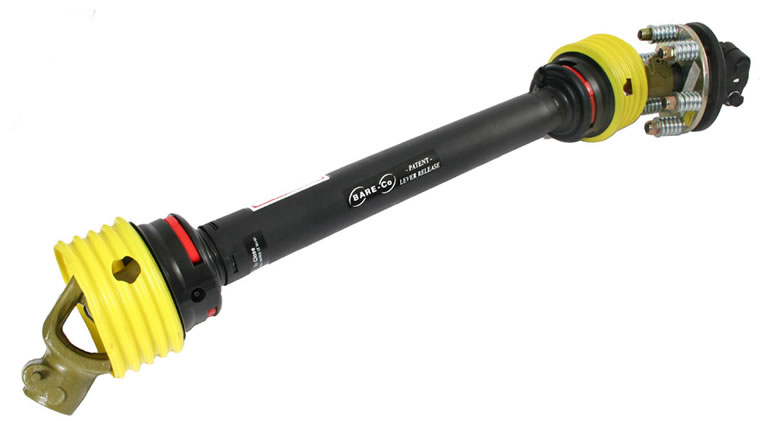

HEAVY DUTY 'US' TYPE CLUTCH & SHAFT ASSEMBLY

POWER
RATING
SHAFT SERIES
TRACTOR END YOKE
CLUTCH ROUND BORE SIZE
OVERALL LENGTH
PART No.
40hp
= 4 series
1 3/8 " x 6 Spline
Quick Release
1 3/8 "
Closed 42"
Open 55"
CLAB4075
40hp
= 4 series
1 3/8 "
Closed 54"
Open 77"
CLAB4105
40hp
= 4 series
1 1/4 "
Closed 54"
Open 77"
CLAB4106
64hp
= 6 series
1 3/8 "
Closed 54"
Open 77"
CLAB6105
WARNING!

Clutch must be
covered with an
approved
low-cost
safety guard:



8" (200mm) dia x 10" (250mm long)
Fits Bare-Co 6" dia. Safety Clutch or equivalent
10" (250mm) dia x 13" (335mm long)
Fits Bare-Co 8" dia. Safety Clutch or equivalent
