80 degree Welded Wide Angle Joints
Wide Angle Shaft Parts
80 DEGREE (WELDED TYPE) WIDE ANGLE JOINTS
for TRIANGLE TUBE
NOTE: Individual spare parts NOT interchangeable with original BYPY joint components
(interchangeable with WALTERSCHEID and BARE-Co)

REF
DESCRIPTION
SHAFT SERIES
4 series
(with standard tube)
6 series
8 series

1
JOINT TO SUIT
INNER TUBE
AG4001
"A" = 36mm (1.42")
1 3/8" x 6 splines

AG4001121
1 3/8" x 21 splines
AG6001
"A" = 45mm (1.77")
1 3/8" x 6 splines

AG6001121
1 3/8" x 21 splines
AG8001
"A" = 54mm (2 1/8")
1 3/8" x 6 splines

AG8001121
1 3/8" x 21 splines

AG8001120
1 3/4" x 20 splines
JOINT TO SUIT
OUTER TUBE
N/A
AG6002
"A" = 54mm (2 1/8")
1 3/8" x 6 splines

AG6002121
1 3/8" x 21 splines
N/A
2
CENTRE ASSEMBLY
AG238000
AG35000
AG36000
3
UNI CROSS KIT
(2 required)
A2106
A3506
A3606
4
QUICK RELEASE
END YOKE
AG2386138
1 3/8" x 6 splines

AG2386121
1 3/8" x 21 splines
AG356138
1 3/8" x 6 splines

AG356121
1 3/8" x 21 splines
AG366138
1 3/8" x 6 splines

AG366121
1 3/8" x 21 splines

AG366120
1 3/4" x 20 splines
5
INNER TUBE YOKE
AG46236
"A" = 36mm (1.42")
Triangle tube
AG66245
"A" = 45mm (1.77")
Triangle tube
Order AG8001 Joint
ASSEMBLY
6
SAFETY CONE ASSEMBLY
ASW3100
7
 ROLL PIN (2 Req)

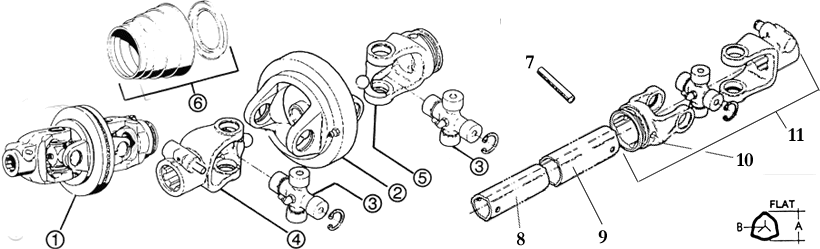

For "A" and "B" dimensions refer to the drawing at the Top of the Page
8
 INNER TUBE M
39" = A364
5 ft = A364X5
"A" =
"B" =
36mm
1 27/64"
4.5mm
11/64"
39" = A454
5 ft = A454X5
"A" =
"B" =
45mm
1 25/32"
4mm
5/32"
39" = A544
5 ft = A544X5
"A" =
"B" =
54mm
2 1/8"
4mm
5/32"
9
 OUTER TUBE
39" = A433
5 ft = A433X5
"A" =
"B" =
43mm
1 11/16"
3mm
1/8"
39" = A544
5 ft = A544X5
"A" =
"B" =
54mm
2 1/8"
4mm
5/32"
39" = A634
5 ft = A634X5
"A" =
"B" =
63mm
2 11/16"
4mm
5/32
10
 OUTER TUBE YOKE
11
 OUTER TUBE JOINT
