P.T.O: Over-run (freewheel) Couplings
Implement Over-Run Couplings
SAFETY WARNING !
U.S. Safety Standard precludes the use of P.T.O. adaptors that could extend the tractor P.T.O. shaft with the possibility of the universal joint protruding BEYOND THE TRACTOR SAFETY SHIELD.
Before fitting these accessories you must confirm that the tractor involved IS fitted with an ASAE or ISO approved tractor Master Power Take-off GUARD as supplied by the tractor manufacturer and that a guard extension has been fitted.
Full guard extension and Safety Instructions are attached to each accessory.

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
IMPLEMENT OVER-RUN (FREEWHEEL) COUPLINGS
  • THESE UNITS ARE NOT A SAFETY CLUTCH!
  • They prevent the tractor PTO and transmISsion being driven by implements on the over-run ie. inability to stop single clutch tractors such as the Ferguson Te20-MF35 single when a Rotary Cutter is attached.
  • No protection under load hence normally used in conjunction with a separate clutch.

SEE COMBINED FREEWHEEL / SAFETY CLUTCHES

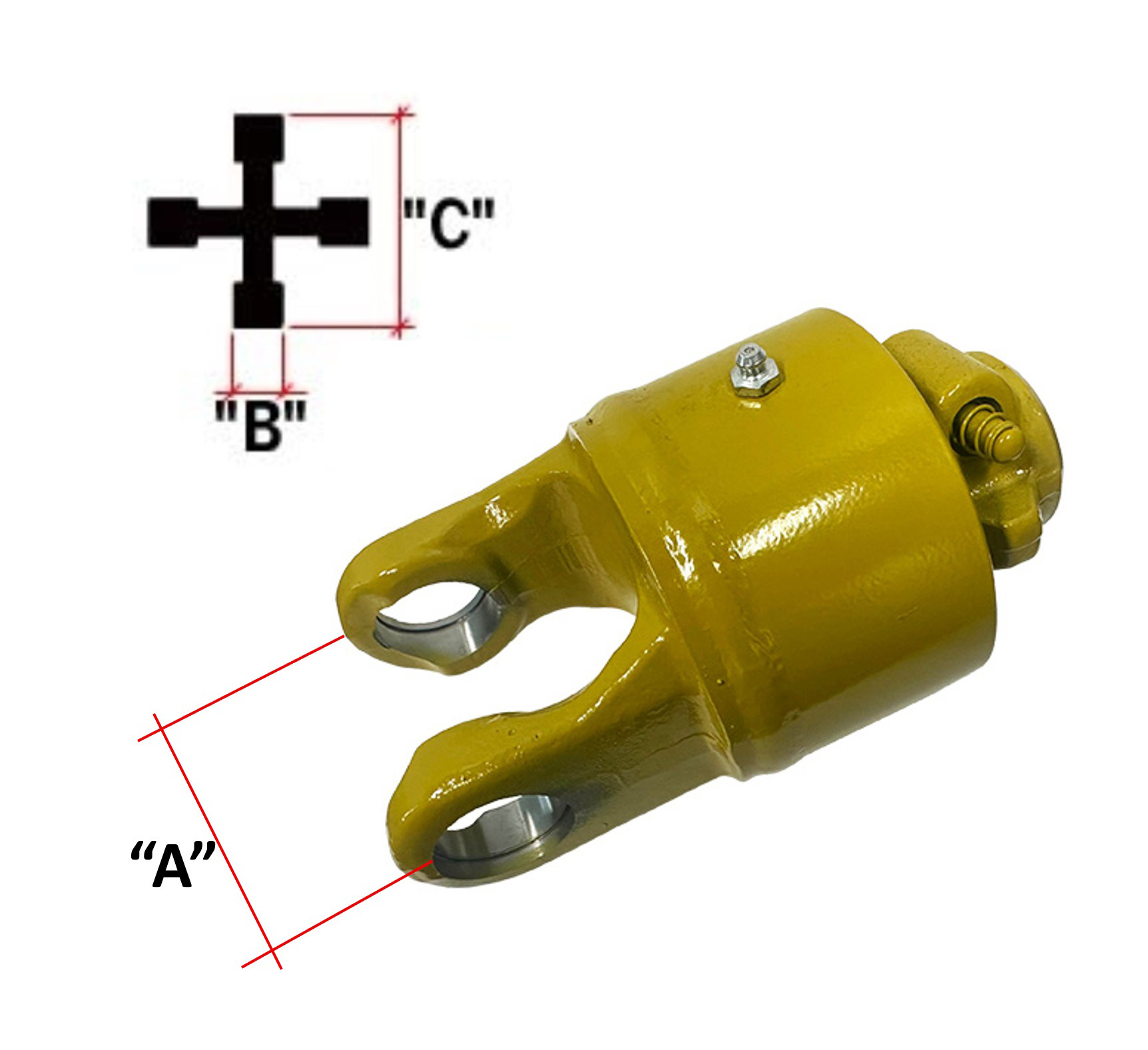

YOKE TYPE



REF
DIMENSIONS
PART No.
SHAFT SERIES
SHAFT SIZE
DESCRIPTION
"A"
"B"
"C"
1
68mm
23.8mm
61mm

=56.140.40

1 3/8" X 6 splines
Quick Release
Type
83mm
27mm
74.6mm
 =56.141.40

101mm
30.2mm
92mm

2
122mm
35mm
106.3mm

1 3/8" X 6 splines
Clamp Type
1 3/4" X 20 splines
Clamp Type
86mm
32mm
76mm

=56.144.40

1 3/8" X 6 splines
Clamp Type

=56.167.40
1 3/4" X 20 splines
Clamp Type
100mm
36mm
89mm

=56.104.40

1 3/8" X 6 splines
Clamp Type

=56.123.41
1 3/4" X 20 splines
Clamp Type
115mm
42mm
104mm

=56.129.41

1 3/4" X 20 splines
Clamp Type

=56.101.41
1 3/4" X 6 splines
Clamp Type
138mm
50mm
118mm

=56.155.41

1 3/4" X 20 splines
Clamp Type

COMBINED OVER-RUN (FREEWHEEL )
& SAFETY CLUTCHES

NON - QUICK RELEASE TYPE

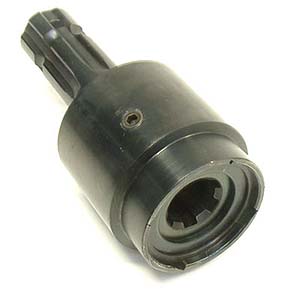

Special Free Wheel Coupling for early production Te20 and JD tractors that do not have quick release groove on PTO shaft

PART No.
DESCRIPTION
1 1/8" x 6 spline female / 1 3/8" x 6 spline male

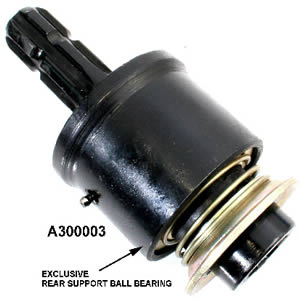

UNIVERSAL TYPE

Designed for fitting to implement end.
Implement Safety Guard must cover coupling.

Exclusive Design Features Internal Bearing
Not to be fitted to tractor end as coupling may protrude past tractor PTO Guard

PART No.
DESCRIPTION
1 3/8" x 6 spline male / female
1 3/8" x 6 spline male / female Special Reverse Rotation Version for early imported Asian Tractors
1 1/8" x 6 spline female / 1 3/8" x 6 spline male

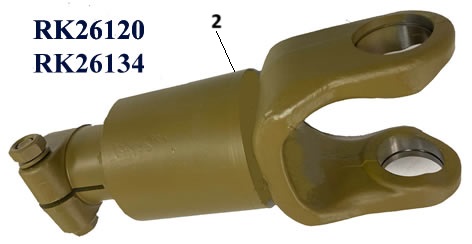

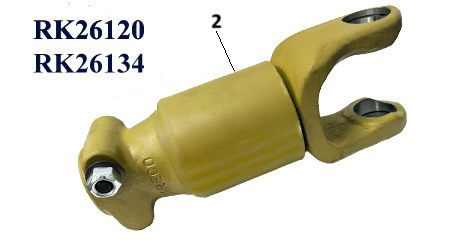

Heavy Duty Units allow PTO driven implements to freewheel with adjustable safety protection under load.
  • Prevents expensive damage to internal tractor PTO packs.
  • Prevents single clutch tractors from being driven forward by PTO over-run.
  • Integral heavy duty adjustable dISc type safety clutch protects PTO drive line.
