200 mm (8") Slip - Clutch - Components
200 mm (8") Slip-Clutch
Components designed to interchange with most 8" Slip Clutches
and BARE-Co 200mm (8") OD Dual Plate Clutches

B3728

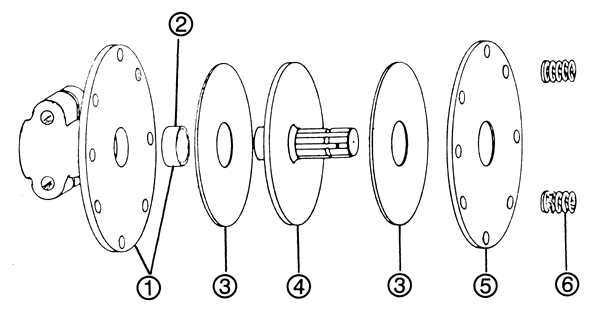

Ref 7
REF
PART No.
DESCRIPTION
1
B3720
1 3/8" x 6 Spline Base ASSEMBLY (includes bush)
B3717
1 3/8" x 21 Spline Base ASSEMBLY (includes bush)
B4720
1 3/4" x 20 Spline Base ASSEMBLY (includes bush)
B6694
1 1/4" Round Bore 1/4" keyway base ASSEMBLY (includes bush)
B4154
1 3/8" Round Bore 3/8" keyway base ASSEMBLY (includes bush)
B6158
1 1/2" Round Bore 3/8" keyway base ASSEMBLY (includes bush)
2
B4172
Bush 1 1/8" ID
3
B3721
Friction Disc 6 1/2" OD x 2 1/2" ID (2 req)
4
B3722
1 3/8" x 6 spline Drive Plate 6 1/2" OD - 1 1/8"dia Spigot
B6791
1 3/4" x 20 spline Drive Plate 6 1/2" OD - 1 1/8"dia Spigot
5
B4155
Outer Pressure Plate
6
B3723
Zinc Plated (Silver) Spring (8 req.)
B3729
Blue Heavy Duty Spring (8 req.)
7
B3728
 Cotter Clamp Bolt and Nut for 20 spline cotter type base.
