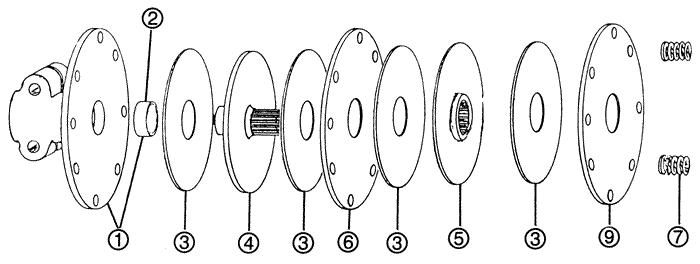

REF |
PART
No. |
DESCRIPTION |
1 |
|
1
3/4" x 20 Spline Base ASSEMBLY (includes bush)
Uprated H.T. Casting |
|
1 3/4" x 6 Spline Base ASSEMBLY (includes bush) Uprated H.T. Casting |
2 |
|
Bush
to suit 1 3/4" x 20 spline base |
3 |
|
Friction
Disc 165mm (6 1/2") OD x 64mm (2 1/2") ID
(6 req) |
4 |
|
1
3/4" x 20 spline Drive Plate 165mm (6 1/2")
OD x 155mm (6") total length |
5 |
|
Intermediate
Pressure Plate 1 3/4" x 20 spline - 2 Req |
6 |
|
Pressure Plate - 3mm (0.118") Thick - 2 Req |
7 |
|
Blue Heavy Duty Spring
(8 req.)
|
8 |
|
Cotter Clamp Bolt and Nut for 20 spline cotter type base. |
9 |
|
Front Pressure Plate |
