40 HP Rotary Cutter Gearboxes
40 HP Gearbox (1:1.93)
Part No. B2666 - 1:1.93 ratio

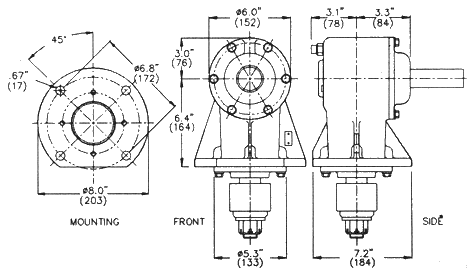

SPECIFICATIONS

A = 160mm (6.3")
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT:		 60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped, Spring Loaded
Deep Groove Ball
EP-140, 26oz, 0.77l
46 lbs, 20.6kg
1 3/8" x 6 spline

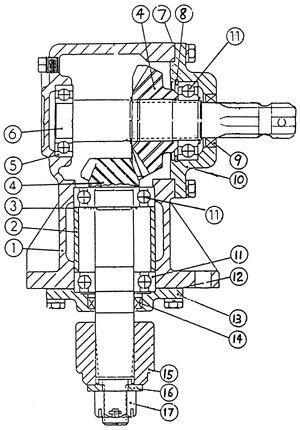

SPARE PARTS
REF
PART No.
DESCRIPTION
1
Main Housing
2
Spacing Sleeve
3
Retaining Ring (3 used)
4
Matched Set of Gears 1: 1.93 ratio
5
Rear Bearing
6
Input Shaft
7
Input Gasket
8
Retaining Ring
9
Input Seal
10
Input Cap
11
Bearing (3 used)
12
Output Gasket
13
Lower Seal Housing
14
Output Seal
15
Hub
16
N/R
Included with Nut # 17
17
1" x 14 TPI Castellated Nut
