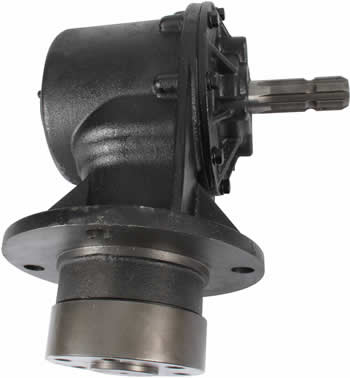

75 HP Rotary Cutter Gearboxes
75 HP Gearboxes
Part No. B82667 - 1:1.46 ratio
Part No. B86667 - 1:1.93 ratio See Below

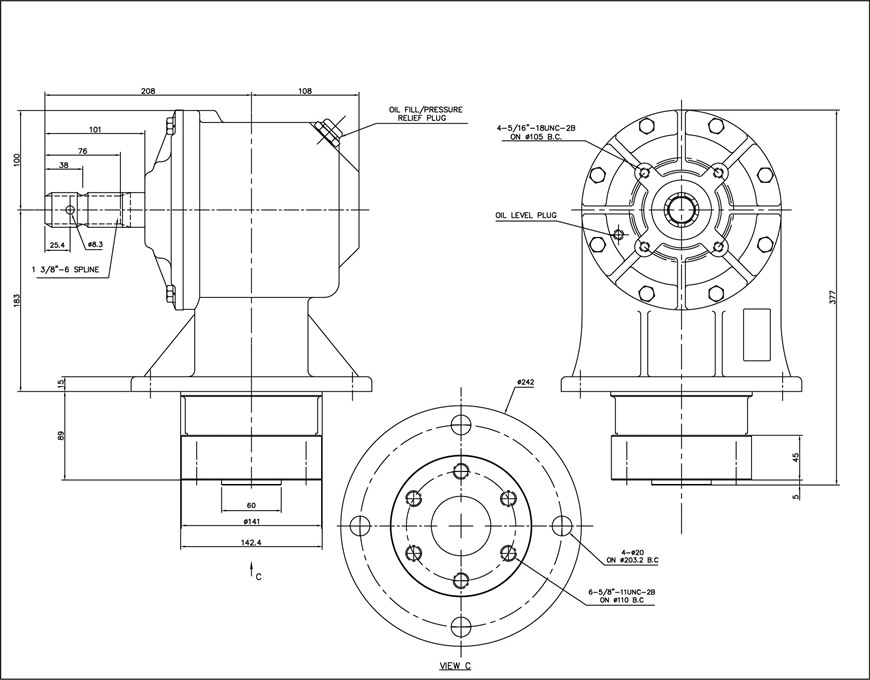

Part No. B82667 & B86667
SPECIFICATIONS

A = 170mm (6.7")
HOUSING:
SHAFTS:
GEARS:
SEALS:


BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT:		 60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Duplicate Lower Seals
Tapered Roller
EP-140, 38oz, 1.12l
76 lbs, 34.5kg
1 3/8" x 6 spline

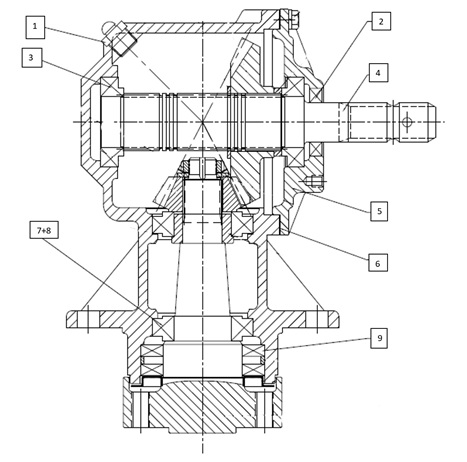

SPARE PARTS
REF
PART No.
QTY
DESCRIPTION
1
1
 Breather Plug
2
1
 Input Seal
3
B65
2
 Cup and Cone input shaft
4
1
 Input Shaft (1 3/8" x 6 splines)
5
1
 Input Cap
6
use qty as req
 Shim gasket
7
B91
2
 Bearing Cone output shaft
8
B93
2
 Bearing Cup output shaft
9
2
 Output Seal
