Complete PTO Shafts
COMPLETE P.T.O. SHAFTS
STANDARD SHAFTS include
SAFETY GUARD &
1 3/8 x 6 spline
QUICK RELEASE YOKE BOTH ENDS
Click Here
for
75 - 300 HP
Higher Power
Ratings
Reduce Rated HP by 40% for severe conditions.
For NON STANDARD END YOKES order shaft LESS YOKE (below)
then select SPECIAL END YOKE from End Yokes Page
IDENTIFICATION
16HP @ 540 rpm
26HP @ 1000 rpm
21HP @ 540 rpm
34HP @ 1000 rpm
35HP @ 540 rpm
56HP @ 1000 rpm
64HP @ 540 rpm
102HP @ 1000 rpm
53HP @ 540 rpm
83HP @ 1000 rpm
Triangular Profile Drive Tube


Shaft Series

Star Profile
Drive Tube
STANDARD SHAFT
Has Quick Release yokes at
both ends.
(1 3/8" x 6 spline)

AB1060
LENGTH
Cross to Cross
Overall
24"- 33"
31"- 40"
----------------------
AB1075
LENGTH
Cross to Cross
Overall
30"- 43"
37"- 50"
---------------------
AB1090
LENGTH
Cross to Cross
Overall
36"- 57 "
43"- 64"
AB2045
LENGTH
Cross to Cross
Overall
18"- 25 "
26"- 33"
----------------------
AB2060
LENGTH
Cross to Cross
Overall
24"- 33"
32"- 41"
----------------------
AB2075
LENGTH
Cross to Cross
Overall
30"- 43"
38"- 51"
----------------------
AB2105
LENGTH
Cross to Cross
Overall
39"- 63"
47"- 71"
----------------------
AB2150
LENGTH
Cross to Cross
Overall
60"- 98"
68"- 106"
AB4060
LENGTH
Cross to Cross
Overall
24"- 33"
33"- 42"
----------------------
AB4075
LENGTH
Cross to Cross
Overall
30"- 43"
39"- 52"
----------------------
AB4105
LENGTH
Cross to Cross
Overall
39"- 63"
48"- 72"
----------------------
AB4150
LENGTH
Cross to Cross
Overall
60"- 98"
69"- 107"
----------------------
AB4205
LENGTH
Cross to Cross
Overall
79"- 134"
88"- 143"
AB6075
LENGTH
Cross to Cross
Overall
30"- 43"
40"- 52"
----------------------

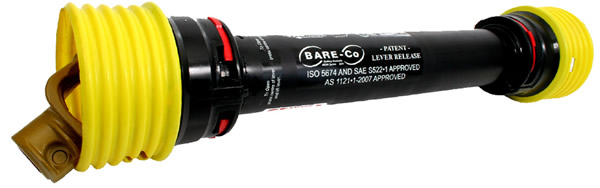

AB6105
LENGTH
Cross to Cross
Overall
39"- 63"
48"- 72"
----------------------
AB6150
LENGTH
Cross to Cross
Overall
60"- 98"
70"- 107"
----------------------
AB6205
LENGTH
Cross to Cross
Overall
79"- 134"
89"- 143"

AW35105

LENGTH
Cross to Cross
Overall
39"- 63"
48"- 72"

----------------------

AW35150

LENGTH
Cross to Cross
Overall
60"- 98"
70"- 107"
SHAFT WITH:
Round Bore Shear Pin Yoke at one end
1 3/8" x 6 spline
Quick Release yoke at other end.
Click Here to ELIMINATE
Shear Bolts ...

...with a modern low-cost Clutch / Shaft ASSEMBLY
Shear Bolt Shafts
RB4075
LENGTH
Cross to Cross
Overall
30"- 43"
39"- 52"
Round bore diameter
is 1 3/8"
---------------
RB4105
LENGTH
Cross to Cross
Overall
39"- 63"
48"- 72"
Round bore diameter
is 1 3/8"
---------------
RB4130
LENGTH
Cross to Cross
Overall
52"- 94"
65"- 103"
Round bore diameter
is 1 1/4 "
RB6105
LENGTH
Cross to Cross
Overall
39"- 63"
49"- 72 "
Round bore diameter
is 1 3/8"
N/A
SHAFT WITH:
One Standard Yoke
1 3/8" x 6 spline
and NO end yoke
on the other end
...will accept non-standard yoke from:
EB1060
LENGTH
Cross to Cross
Overall
24"- 33"
28"- 38"
----------------------
EB1075
LENGTH
Cross to Cross
Overall
30"- 43"
34"- 47"
----------------------
EB1090
LENGTH
Cross to Cross
Overall
36"- 57 "
40"- 60 "
EB2045
LENGTH
Cross to Cross
Overall
18"- 25"
22"- 29"
----------------------
EB2075
LENGTH
Cross to Cross
Overall
30"- 43"
34"- 47"
----------------------
EB2105
LENGTH
Cross to Cross
Overall
39"- 63"
43"- 67"
----------------------
EB2150
LENGTH
Cross to Cross
Overall
60"- 98"
64"- 102"
EB4075
LENGTH
Cross to Cross
Overall
30"- 43"
35"- 48"
----------------------
EB4105
LENGTH
Cross to Cross
Overall
39"- 63"
44"- 67"
----------------------
EB4150
LENGTH
Cross to Cross
Overall
60"- 98"
65"- 103"
EB6105
LENGTH
Cross to Cross
Overall
39"- 63"
44"- 68"
----------------------
EB6150
LENGTH
Cross to Cross
Overall
60"- 98"
65"- 103"
EW35105
LENGTH
Cross to Cross
Overall
39"- 63"
44"- 68"
----------------------
EW35150
LENGTH
Cross to Cross
Overall
60"- 98"
65"- 103"


SHAFT: Has
NO END YOKES
...to accept non-standard yoke from:
N/A
EE2075
LENGTH
Cross to Cross
Overall
30"- 43"
30"- 43"
----------------------
EE2105
LENGTH
Cross to Cross
Overall
39"- 63"
39"- 63"
----------------------
EE2150
LENGTH
Cross to Cross
Overall
60"- 98 "
60"- 98 "
EE4075
LENGTH
Cross to Cross
Overall
30"- 43"
30"- 43"
----------------------
EE4105
LENGTH
Cross to Cross
Overall
39"- 63"
39"- 63"
---------------------
EE4150
LENGTH
Cross to Cross
Overall
60"- 98 "
60"- 98 "
EE6105
LENGTH
Cross to Cross
Overall
39"- 63"
39"- 63"
----------------------
EE6150
LENGTH
Cross to Cross
Overall
60"- 98 "
60"- 98 "
N/A
See Also 75 - 150 HP Page for Higher PowerRatings
